Description

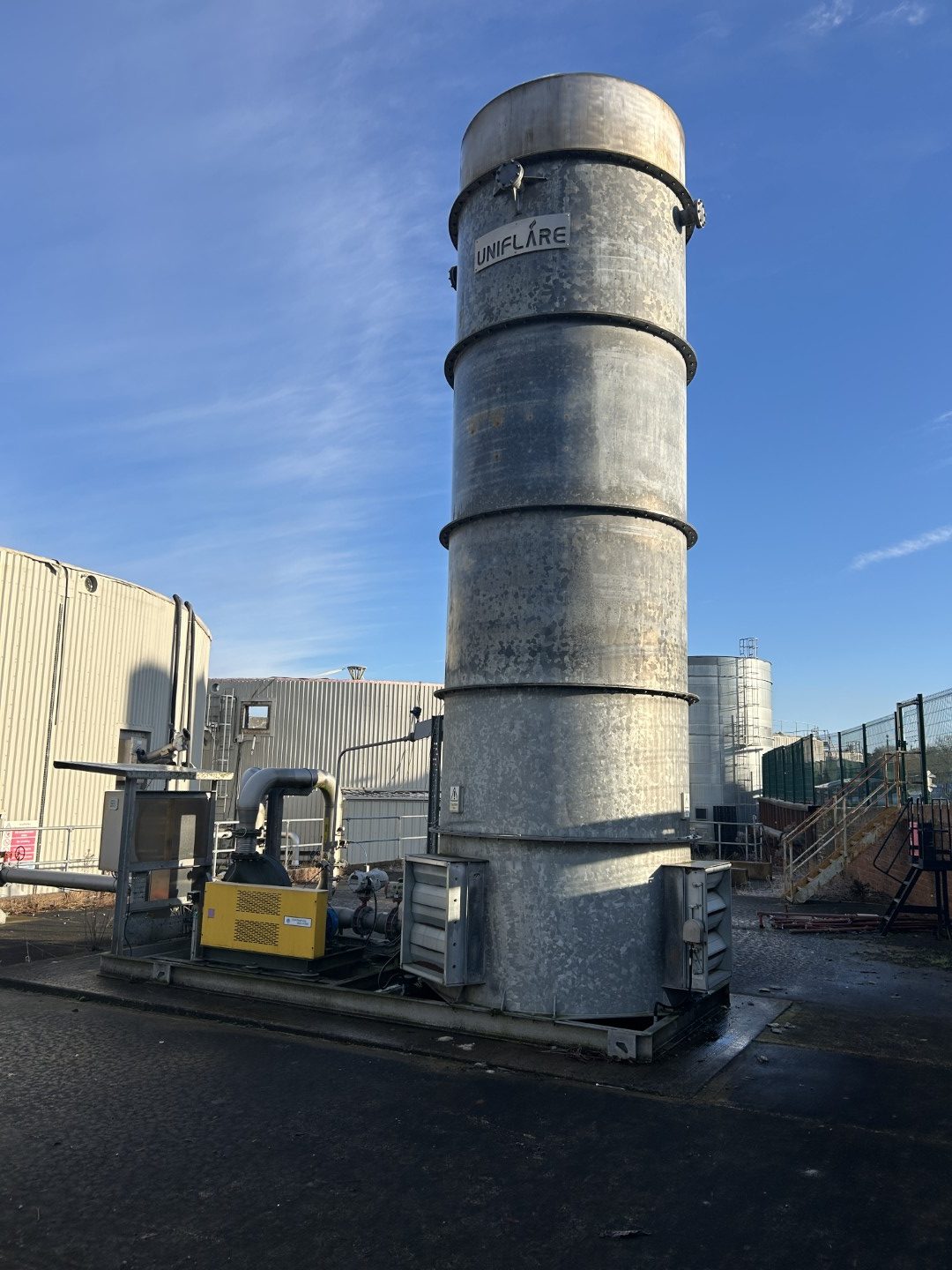

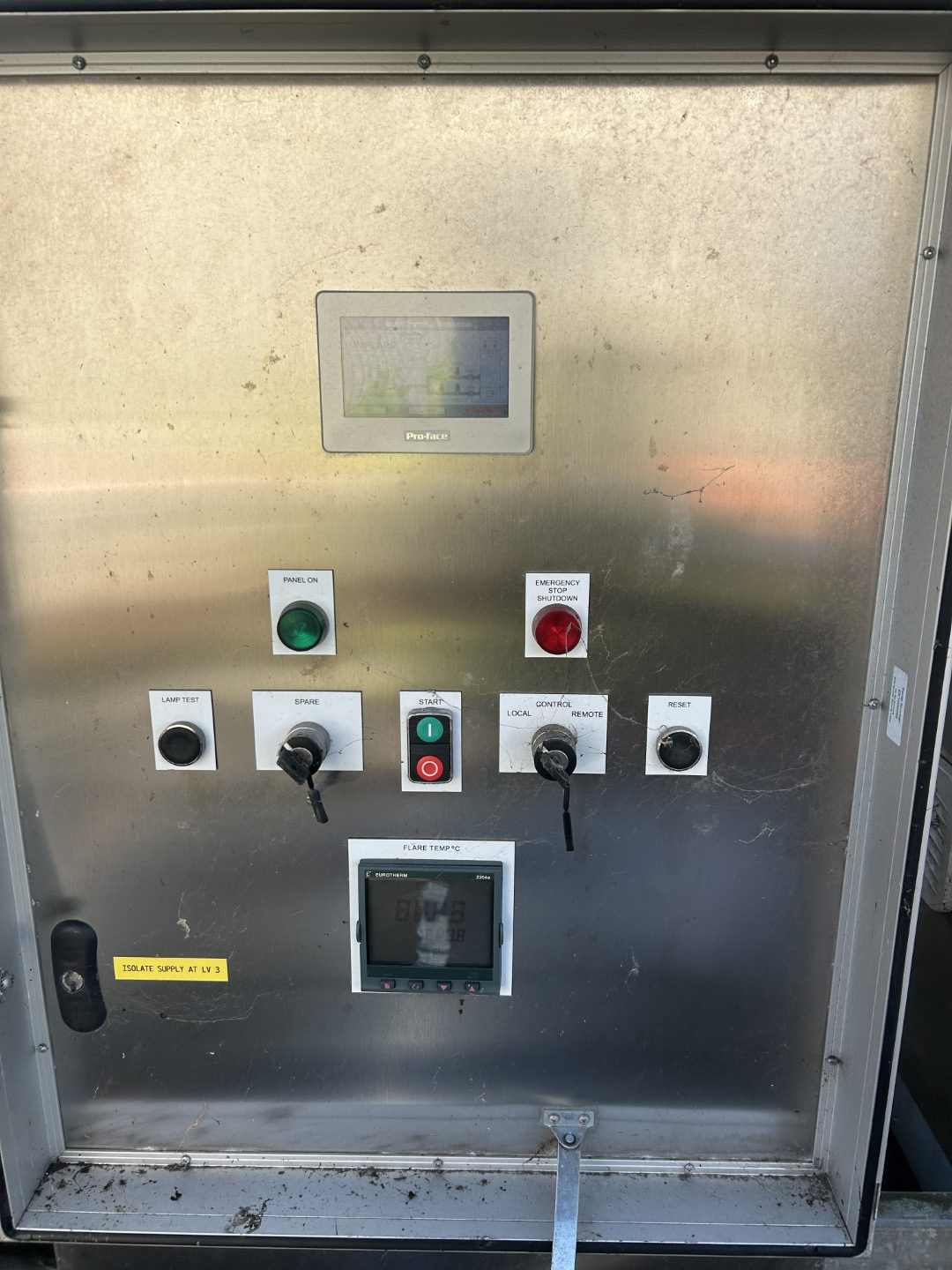

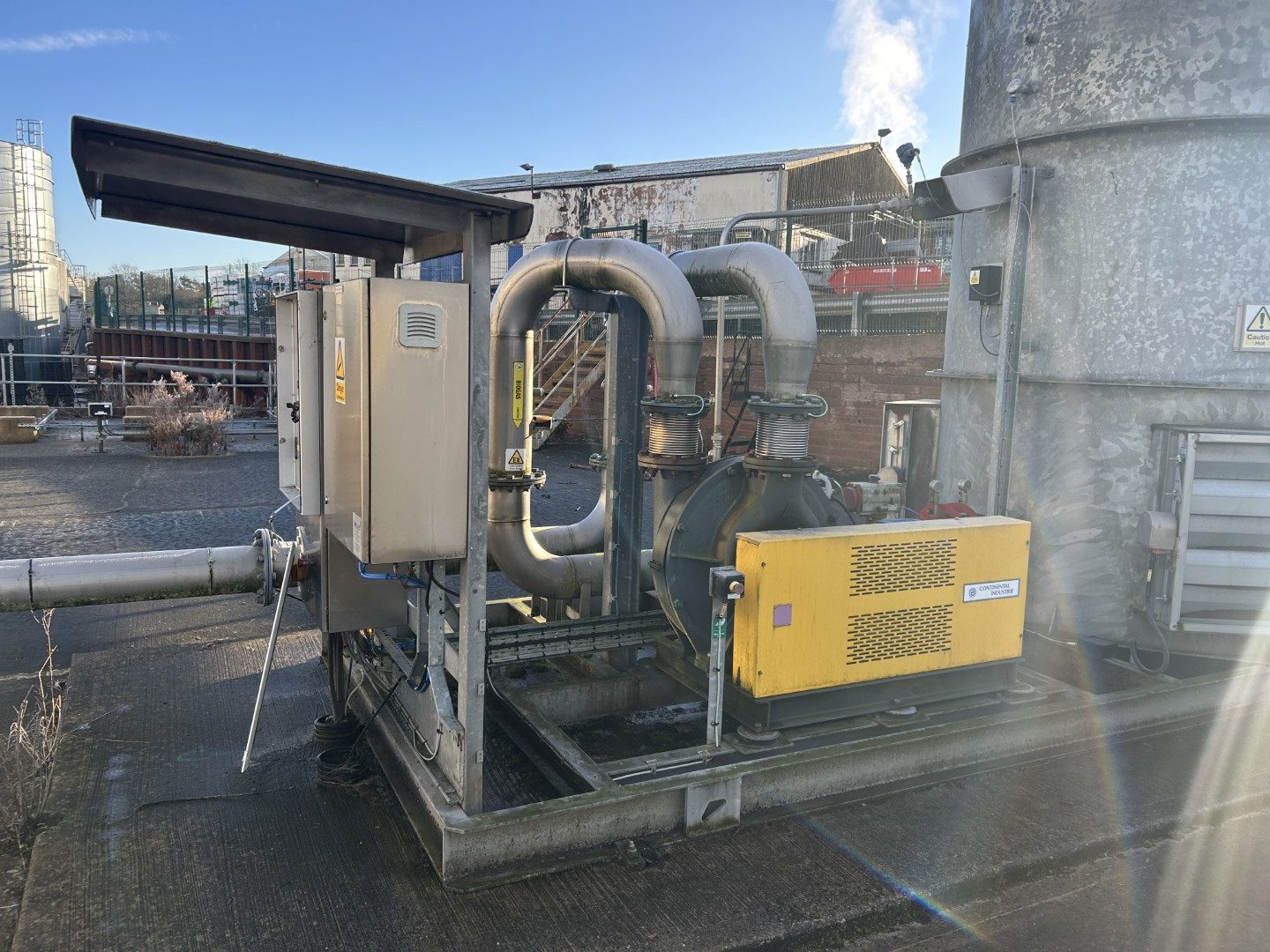

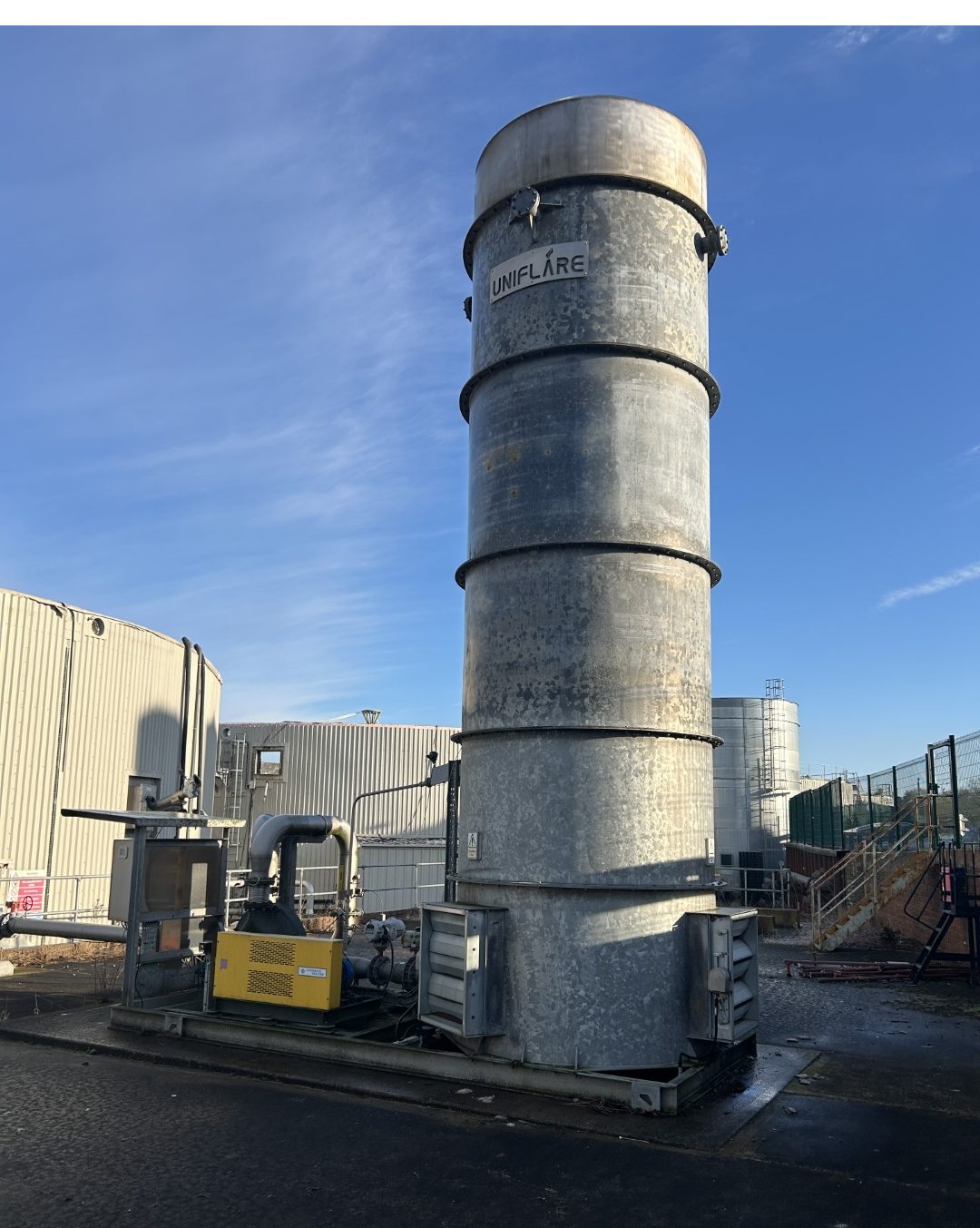

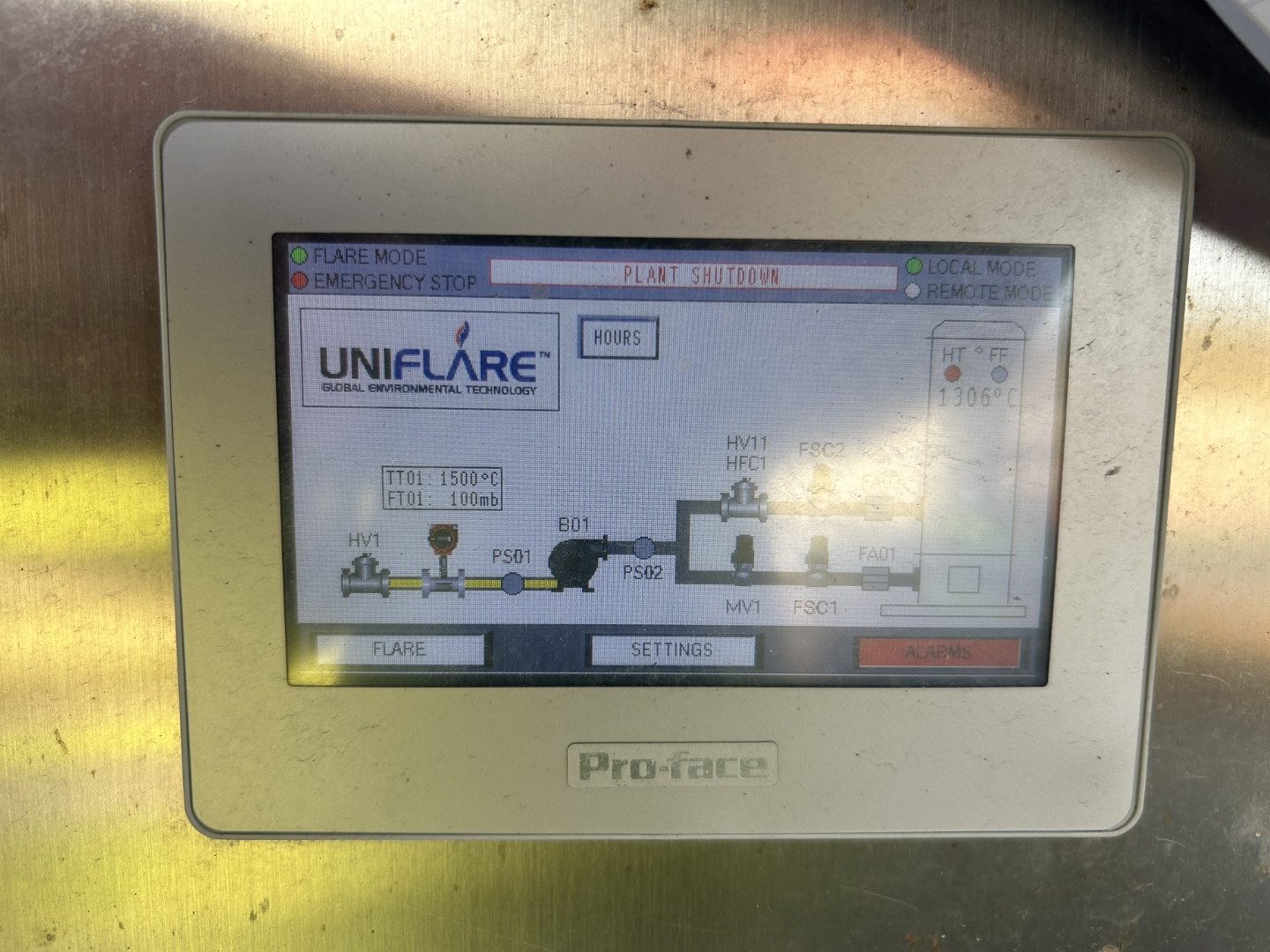

Uniflare 1500m3/hr biogas flare with booster and control panel for sale.

Good condition, available for sale due to replacement with a larger unit.

Technical Specifications

1500 Nm³/hr Controlled combustion ground flare with cyclonic action burners. At full load, of 60% CH4 at 1,000°C the retention time is greater than 0.3 seconds.

The combustion shroud is 6 mm galvanised carbon steel for maximum longevity with 125mm thick 1265°c 128kg m-3 ceramic fibre insulation fixed on edge.

The plenum chamber walls and floor are lined with ceramic blanket to reduce heat loss, provide combustion silencing and protect the concrete slab base from heat damage.

4 off DN125 emission monitoring ports 1 metre down from the top of the stack to UK Environmental Agency’s “Guidance for Monitoring Enclosed Landfill Gas Flares” requirements.

The shroud base is galvanised carbon steel.

Inlet biogas flow rate: 1500Nm3/hr

Nominal inlet pressure: 0-10mbarg

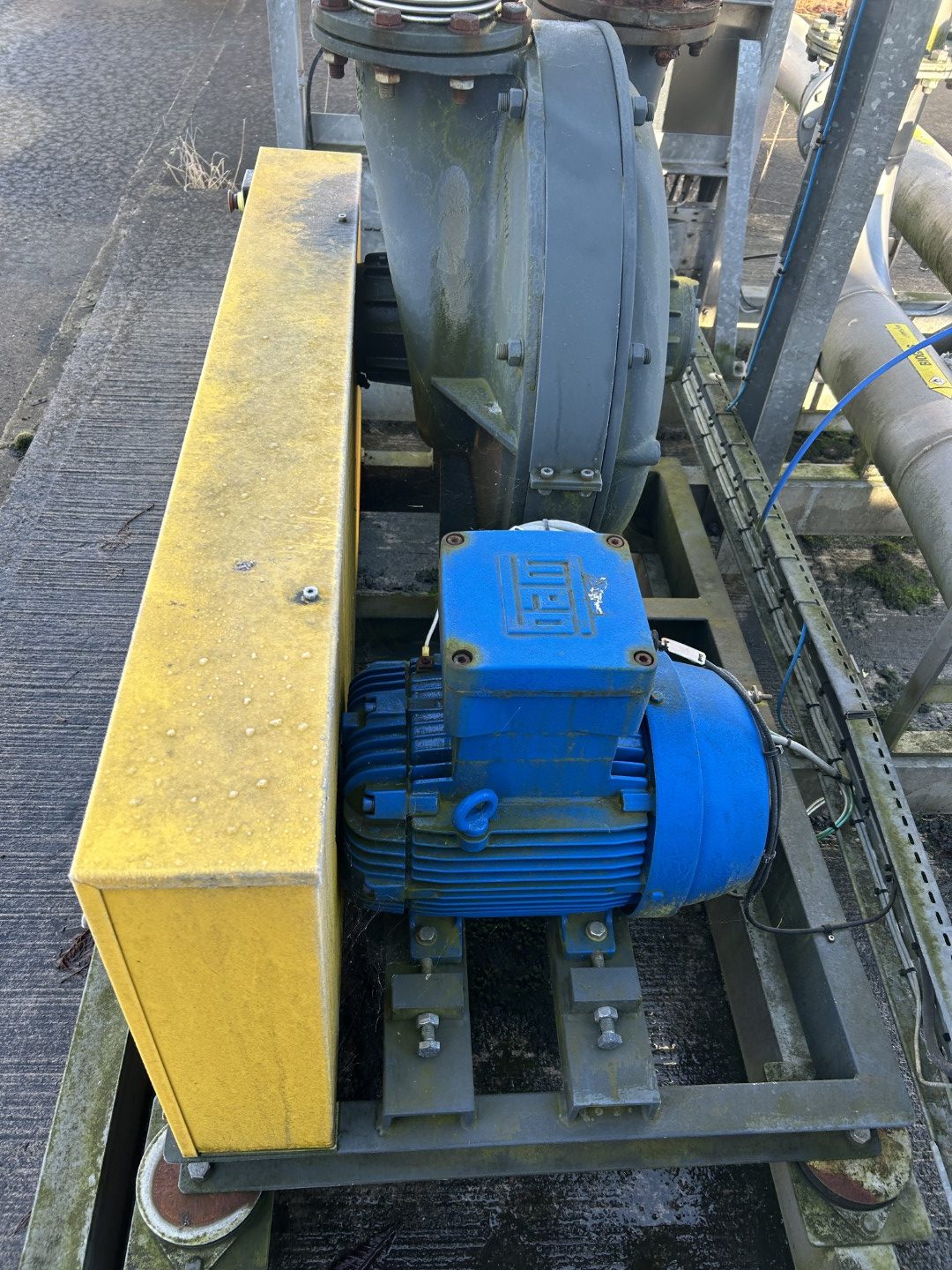

Booster installed power: 11kW

Inlet connection: DN200, PN16

Dimensions and Weights

Base frame dimensions: L x W: 5700 x 2380mm

Stack height from ground level: 8283mm

Concrete plinth minimum recommended dimensions: L x W: 7300 x 3400mm

Main Skid: 4,500kg

Top Shroud: 4,000kg

Total: 8,500kg

Location: SW England

Available: From March 2026

Buyer to collect

Please call to arrange an inspection
