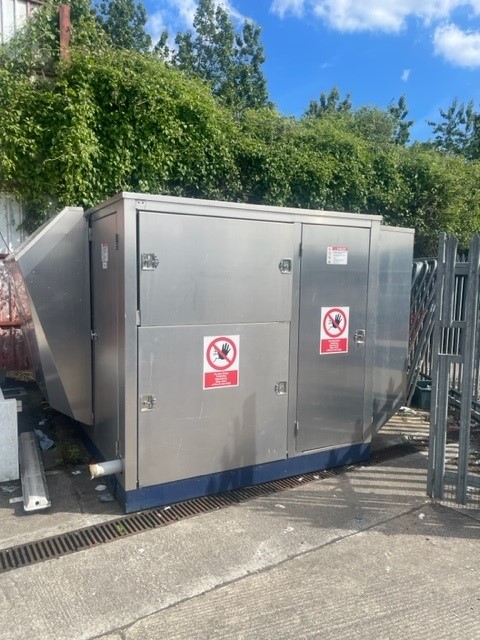

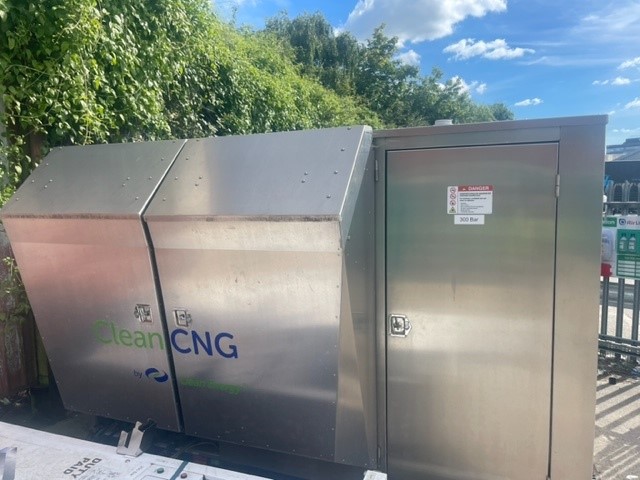

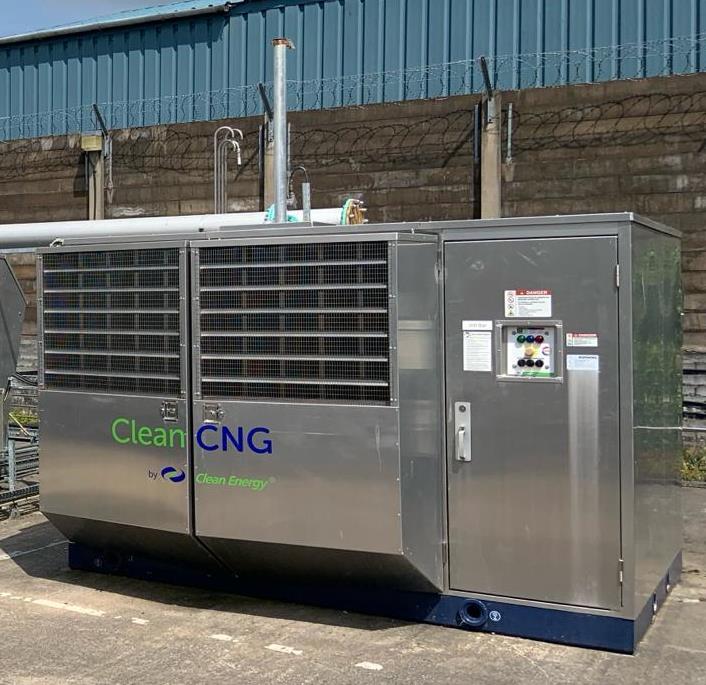

IMW High Pressure Compressor for biomethane/CNG for sale

Recently removed from CNG Refuelling station

Model type: IMW50 Series 3250DA-268-4500-5AC/J-02 H

Year: 2018

Ideal for CNG/biomethane vehicle refuelling station or trailer loading system for virtual pipeline project

Features

Balanced reciprocating design for low vibration and low noise

Self lubricating composite piston rings and packings

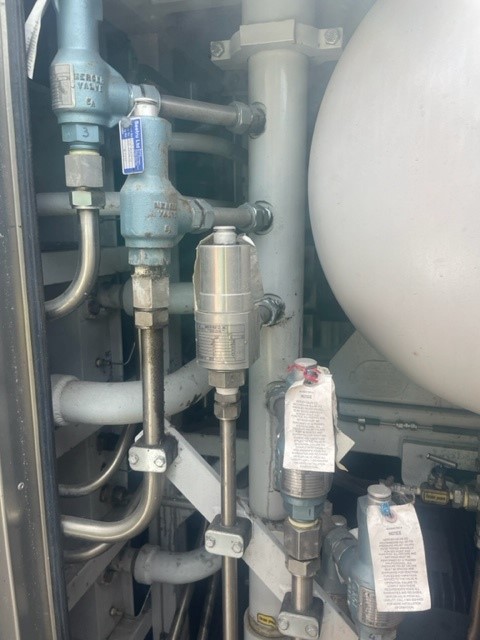

Double ferrule stainless steel compression fittings on piping / tubing and less

10 micron particle inlet filter and 1 micron coaslecing discharge filter

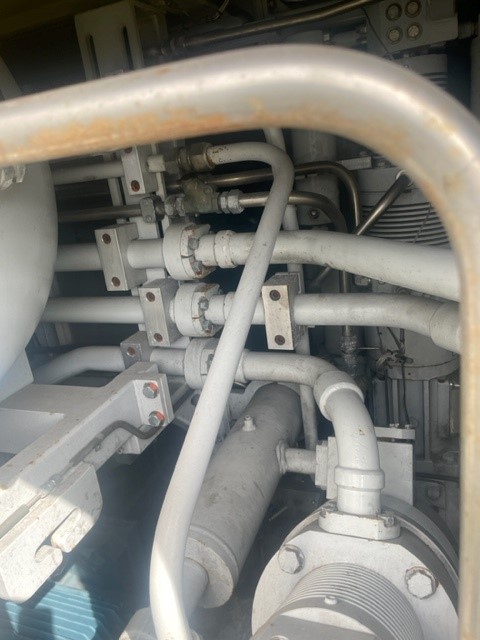

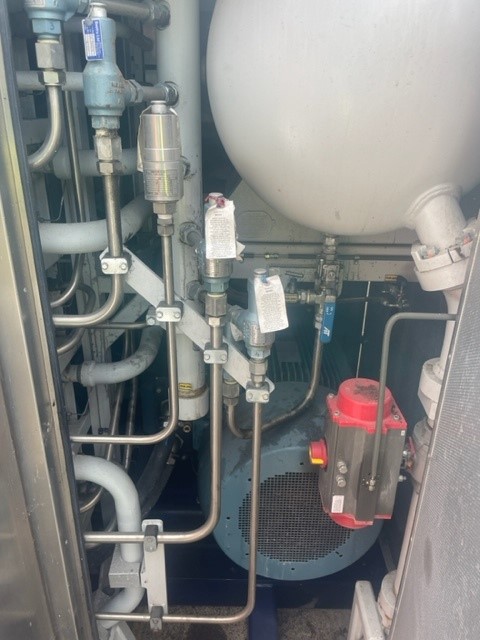

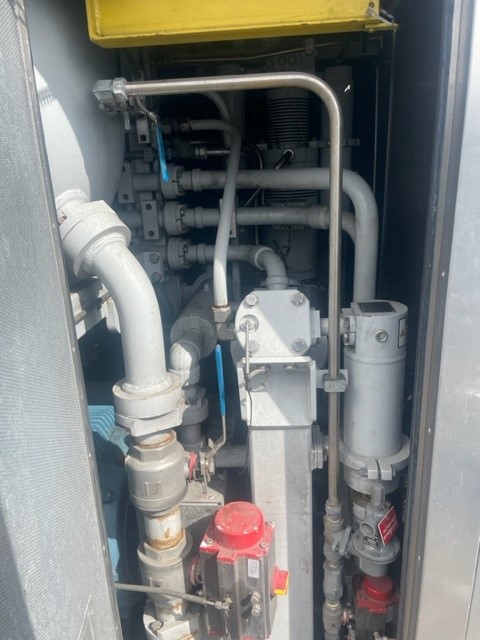

Inlet and outlet pulsation bottles and interstage scrubber bottles

High efficiency gas to air heat exchangers for interstage and discharge gas cooling

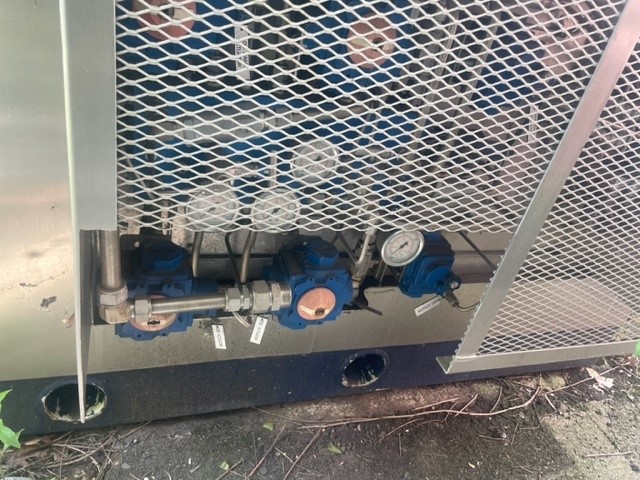

Gauge panel display of system status, temperatures and pressures

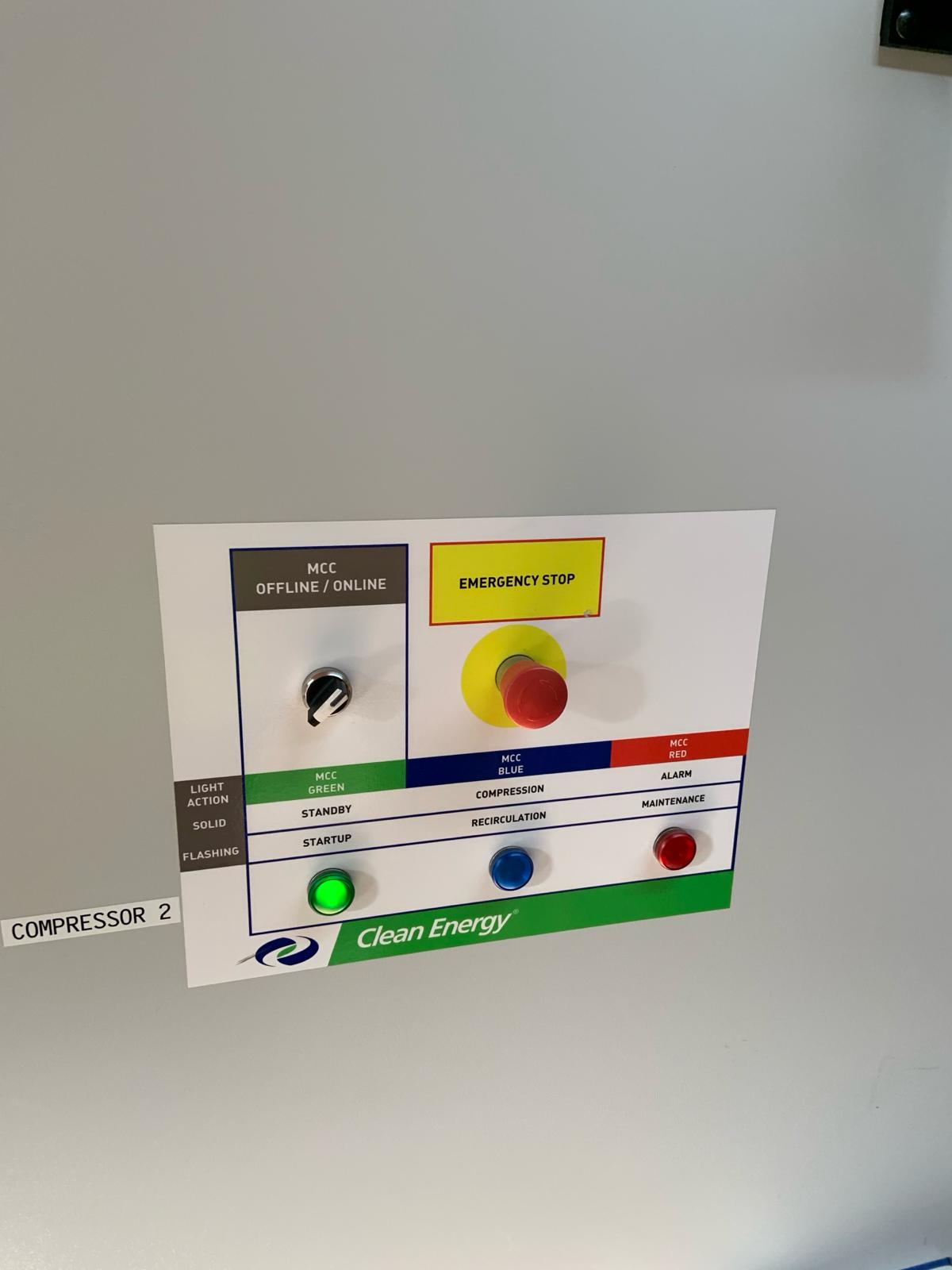

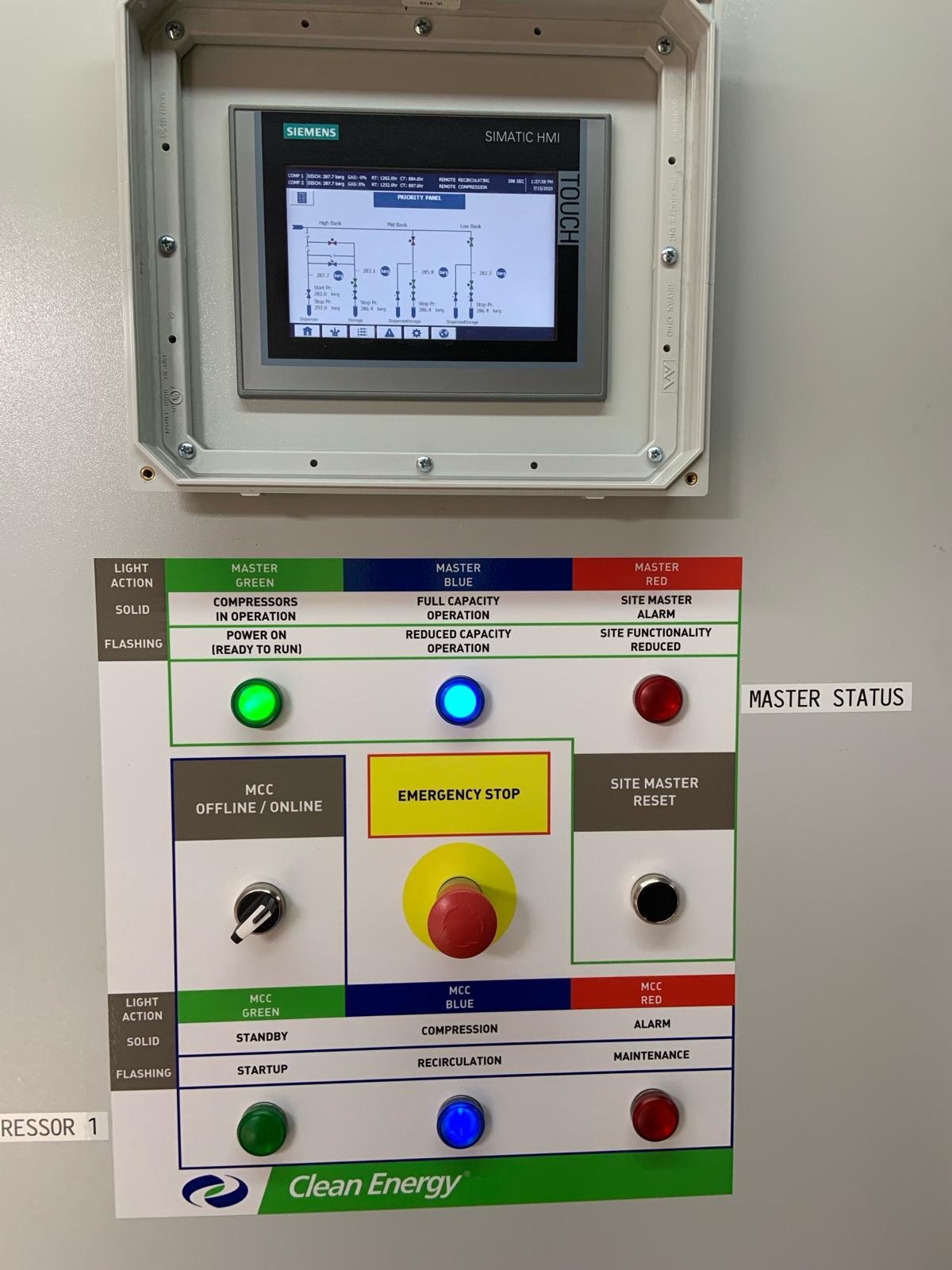

Electrical control panel with alarm status indicators for unattended operation

Electronic soft starter included

Colour HMI for easy user operation

25-year service life on crankcase

Compressor layout designed for easy service

Maintenance free drive belt system for performance flexibility and easy alignment

Overhead internal lighting suitable for hazardous location

Tech Specs

Motor Power: 200kW, 400V

Inlet gas pressure: 0.35 – 0.7bar

Delivery flow rate at 0.35bar inlet pressure: 540Nm3/hr, consumed power 155kW

Delivery flow rate at 0.52bar inlet pressure: 612Nm3/hr, consumed power 168kW

Delivery flow rate at 0.7bar inlet pressure: 689Nm3/hr, consumed power 182kW

Compression stages: 5

Weight: 7,700kg (appx)

Footprint: 3.2 x 2.2 x 2.23m

Internal cooler fans fitted: 2×7.5kW

Service History

Full service history from IMW’s chosen service partner available on request

Control panel included in sale

Available: Immediately

Location: SW England

Please call to arrange an inspection
