Description

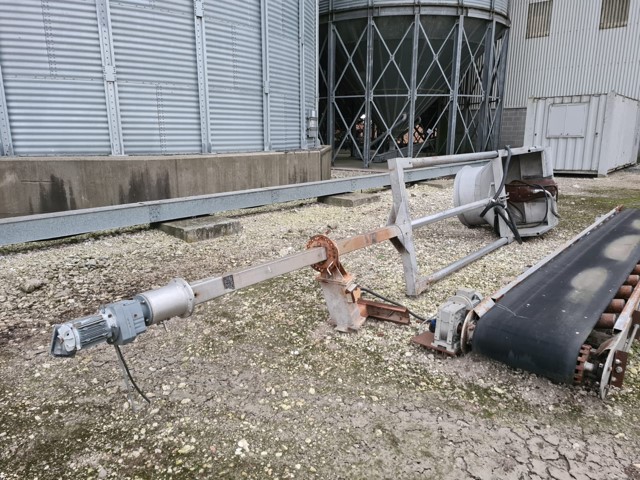

FF- Maschinenbau Compulsory (Jet) Mixer with motorised automatic height adjustment for sale.
Removed from digester feedstock pre-treatment / conditioning tank after changing to pumped feed system.

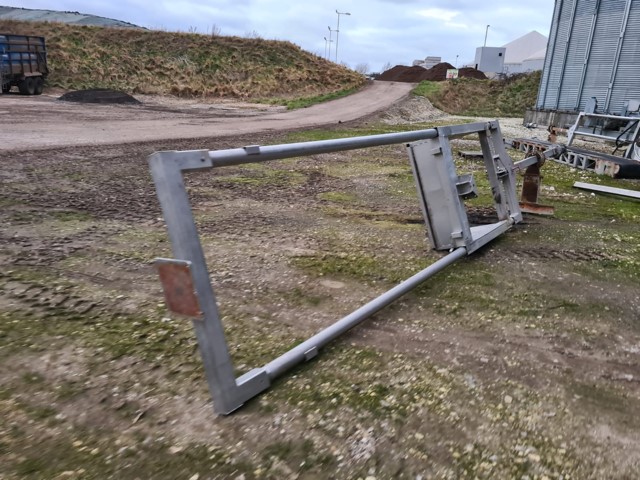

Sale includes a spare frame and a reconditioned mixer unit.

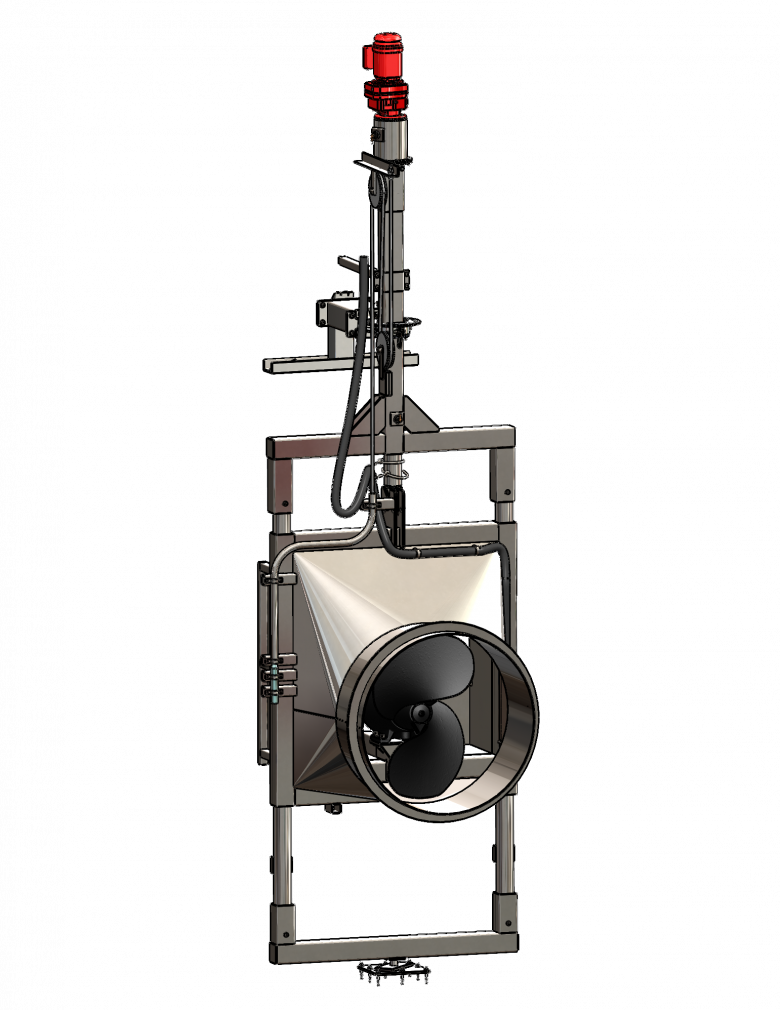

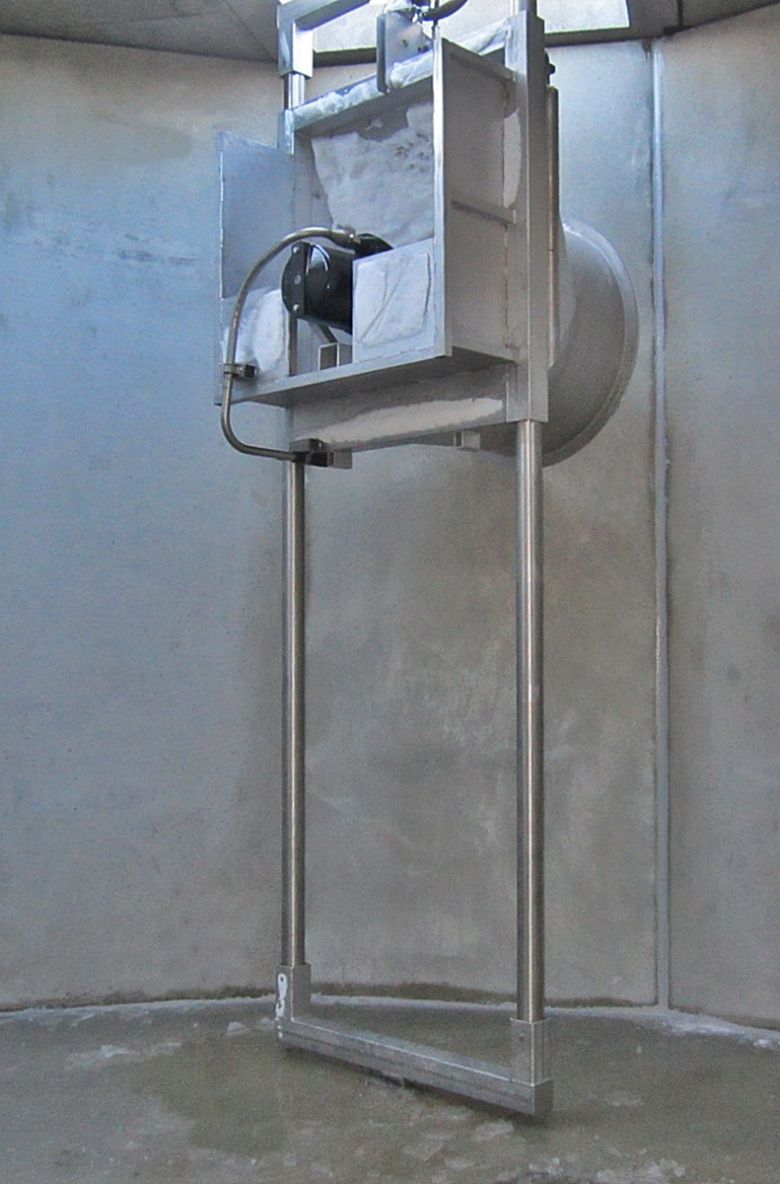

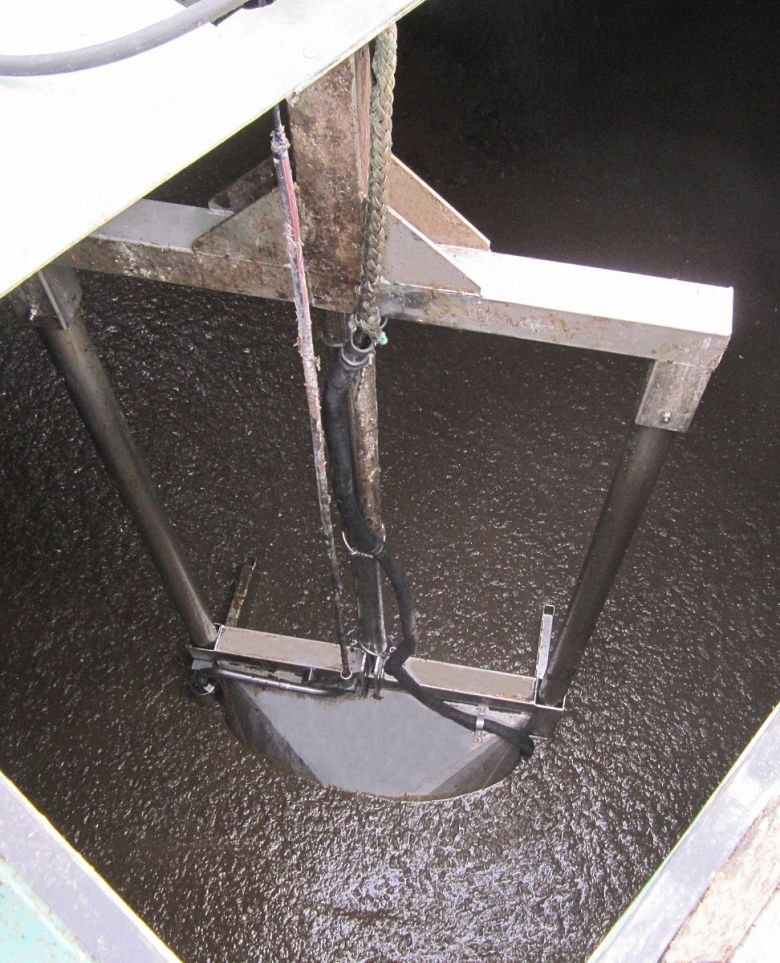

Equipment is designed to be installed in a tank / pit and features automatic height adjustment to mix throughout the vertical column in the tank.

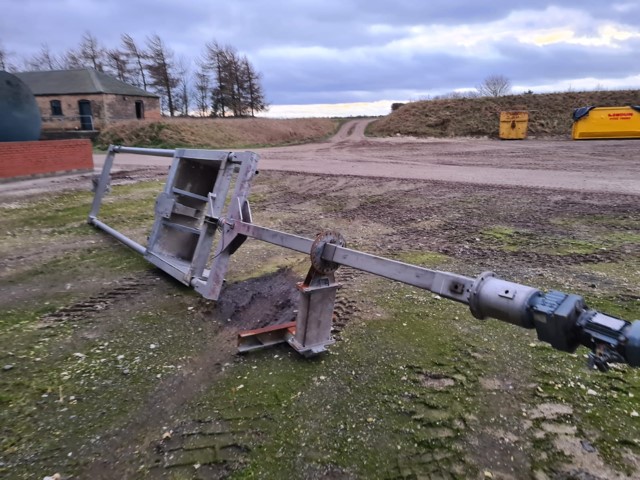

Height adjustment is achieved via trapezoidal – threaded bar which is located in its own encapsulated column and driven by a geared motor.
With the construction made entirely of stainless steel, a maximum travel distance of 2.25 m can be achieved. Automatic guidance, which always sets the compulsory mixer to the optimum working height with varying fill levels can be installed during the manufacture of the machine as an optional extra, available upon request.
technical data:
- high quality, helically welded two- bladed propeller with large thrust and high throughput
- designed in fine-grain steel S 355, d = 850 mm
- thrust maximum 4040 N, throughput up to 1.75 m/s
- n = 264/min , rated power supply 15 kW
Availability: Immediate
Location: North East England
Please call to arrange an inspection.
