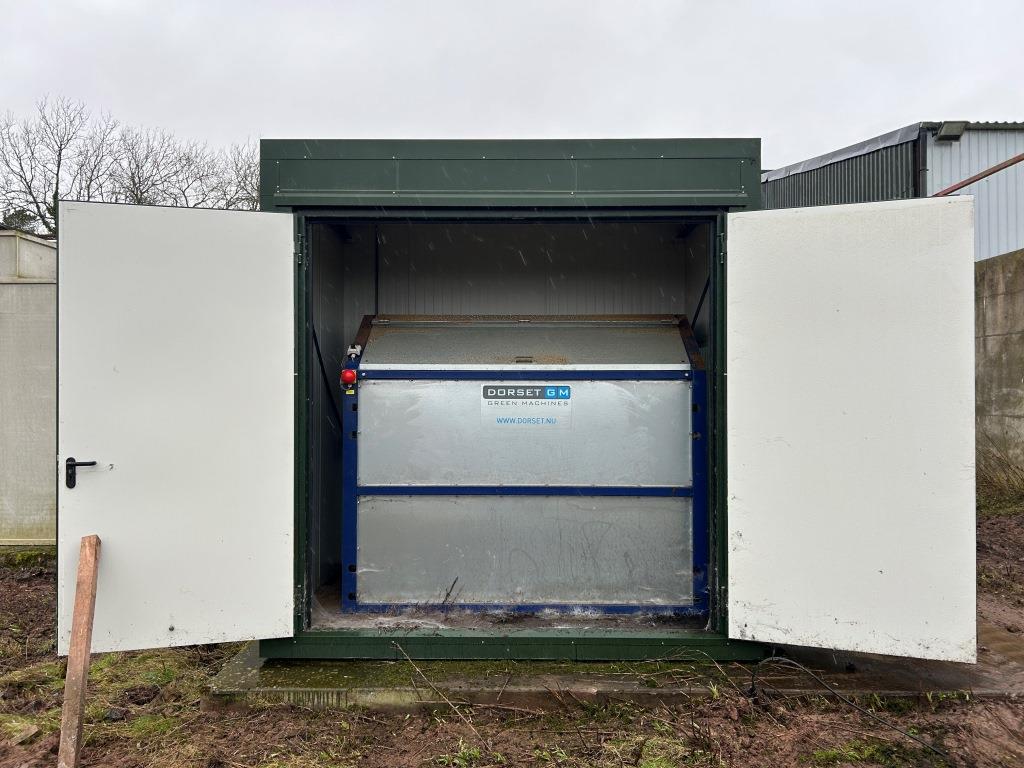

Complete Dorset drying system with exhaust air cleaning for sale

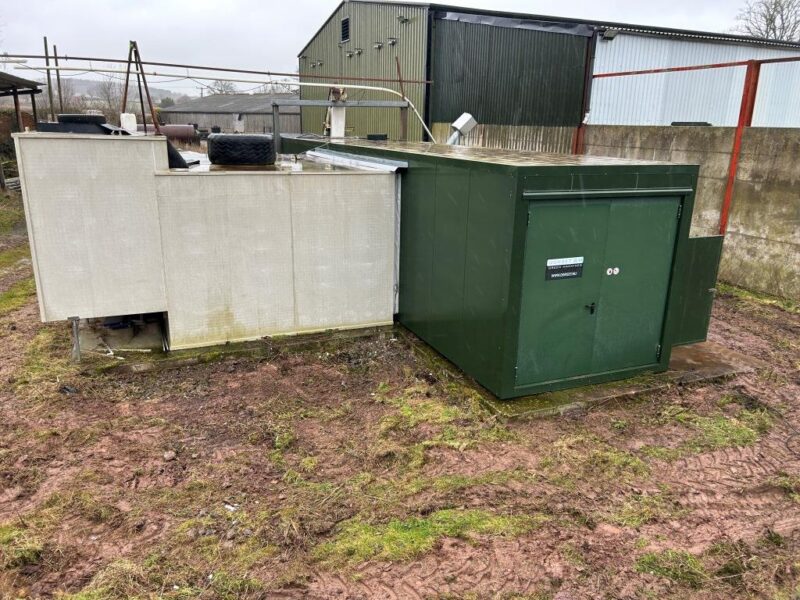

Model RM-M9 E/D – Container Version – one layer/two layer drying

Suitable for whole digestate 8-10%DM

Digestate Input: 2.119 t/y, 8% dm
Output: approx. 199 t/y, 85% dm

Heat input: 300kW
–
Drying performance: approx. 0,6 -1,0 kg water per kWh subject to local/ conditions
Heat requirement: 300 kWth
Expected operating hours: approx. 8.000 h/a
Maximum air flow dryer (hot): 22.500Nm3/h, 67°C air input temperature
Water input temperature: 80°C

Scope of supply:

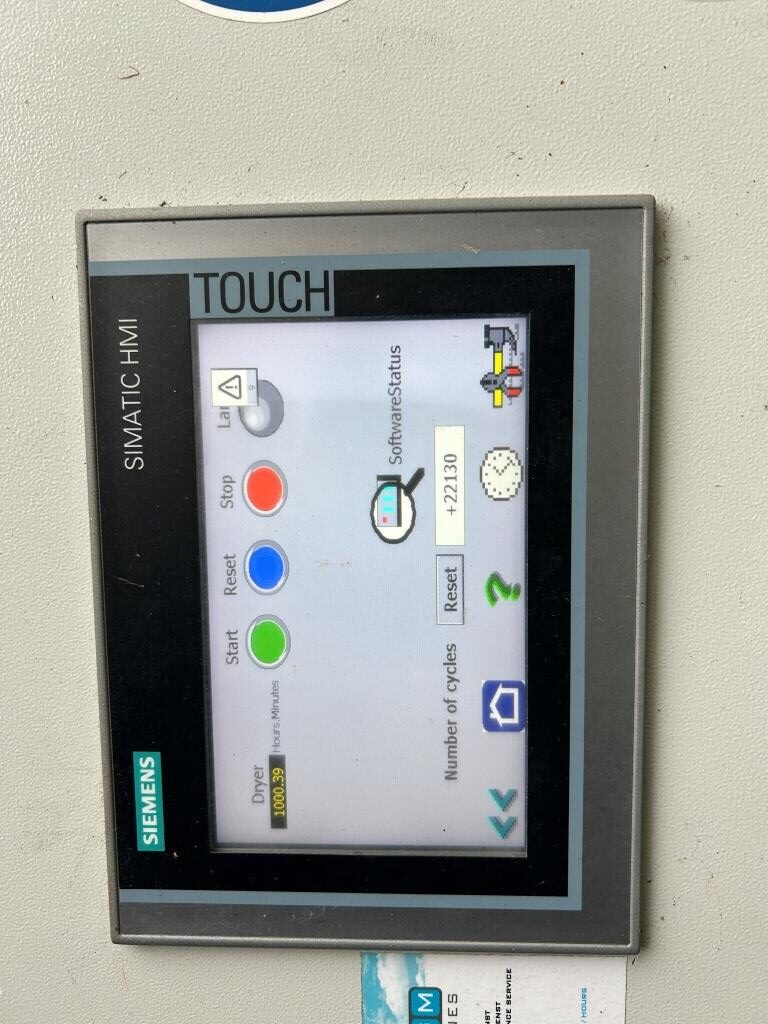

• Control panel for complete system operation

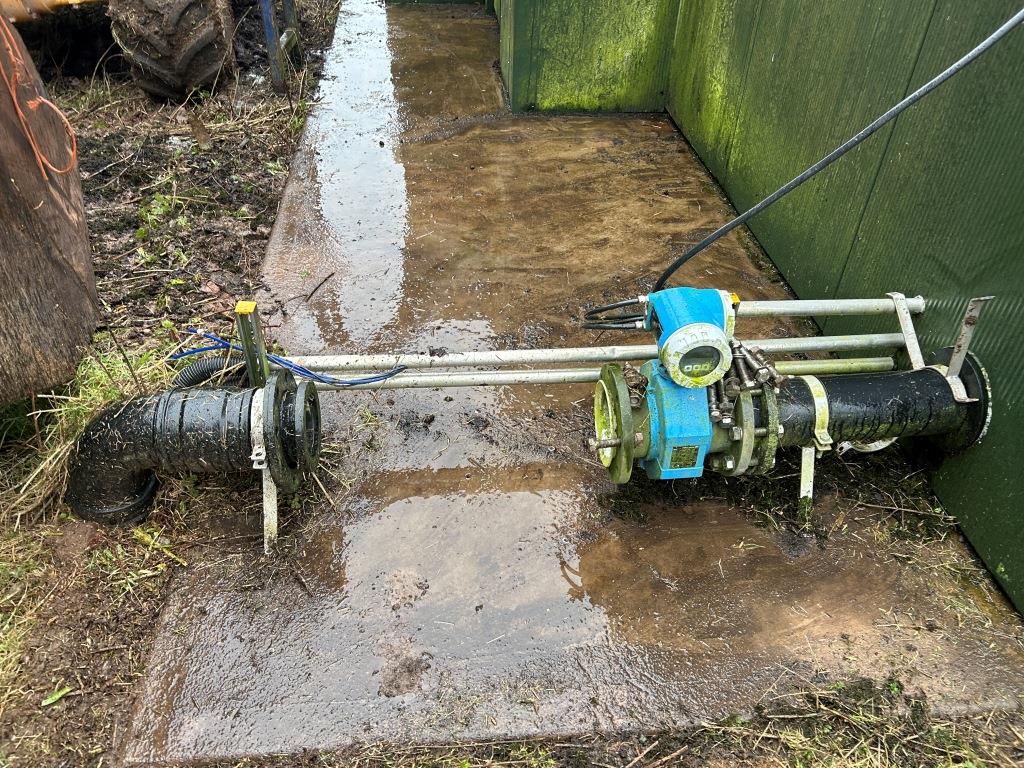

• DN150 digestate inlet connection with Endress & Hauser Promag 50 flow meter
• Backmixing unit to recombine dried digestate with fresh digestate on belt

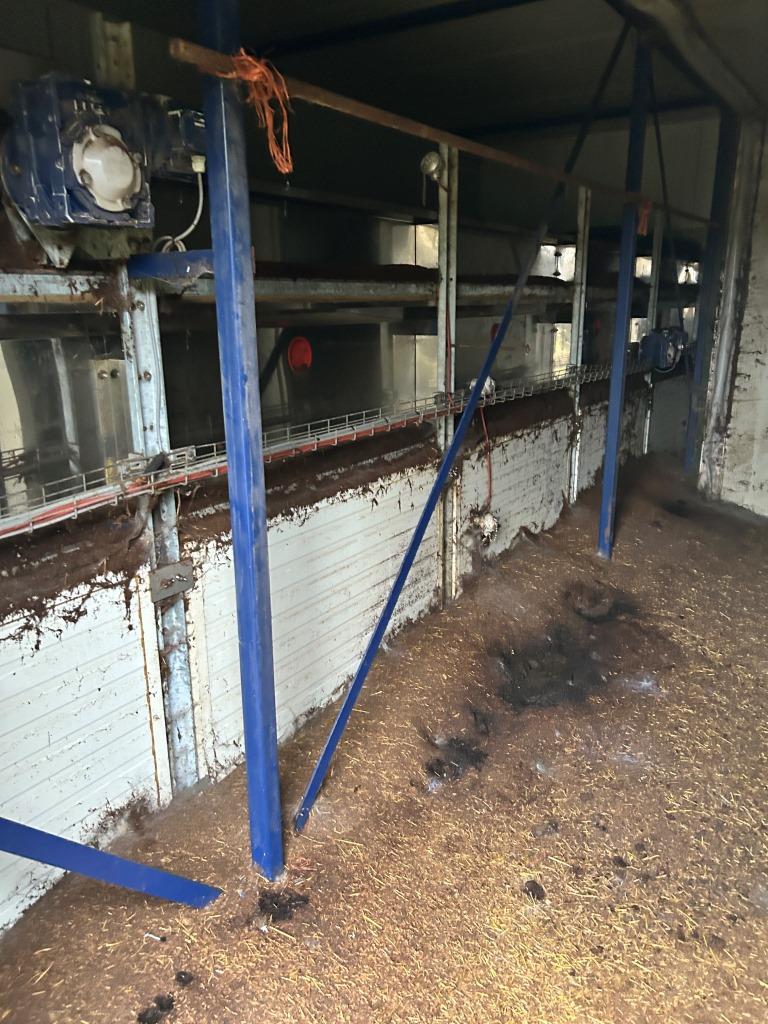

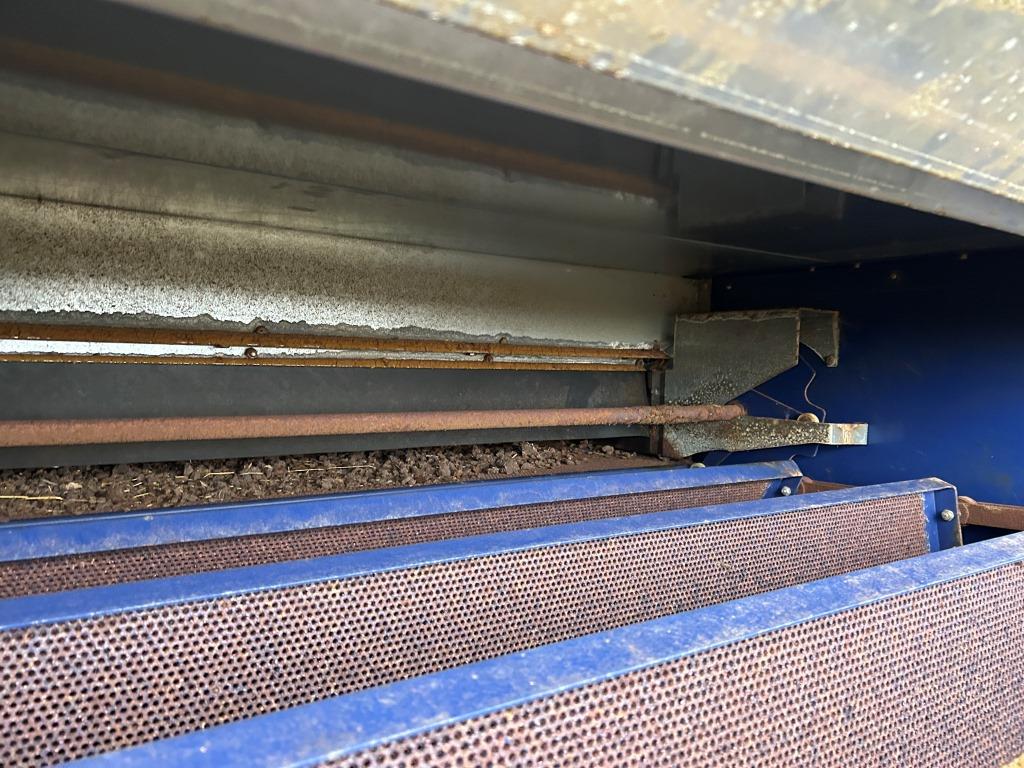

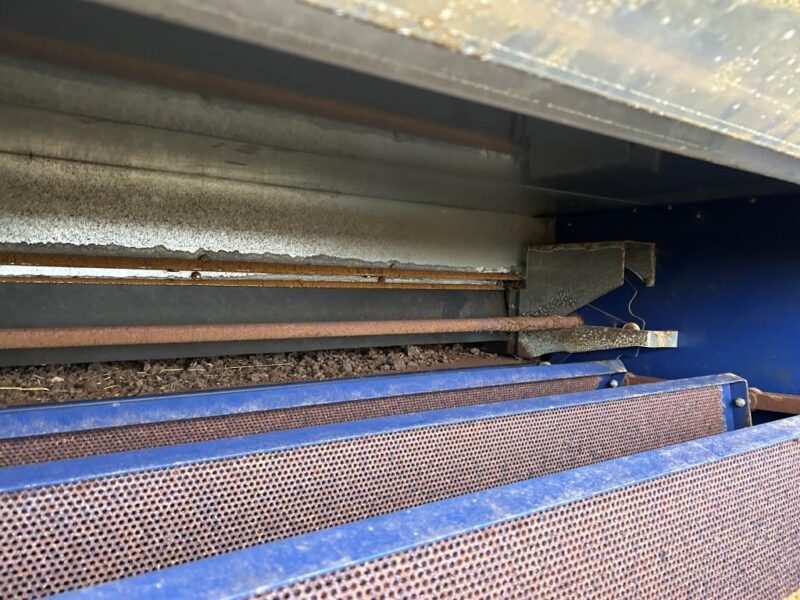

• Heavy duty belt for optimum drying efficiency

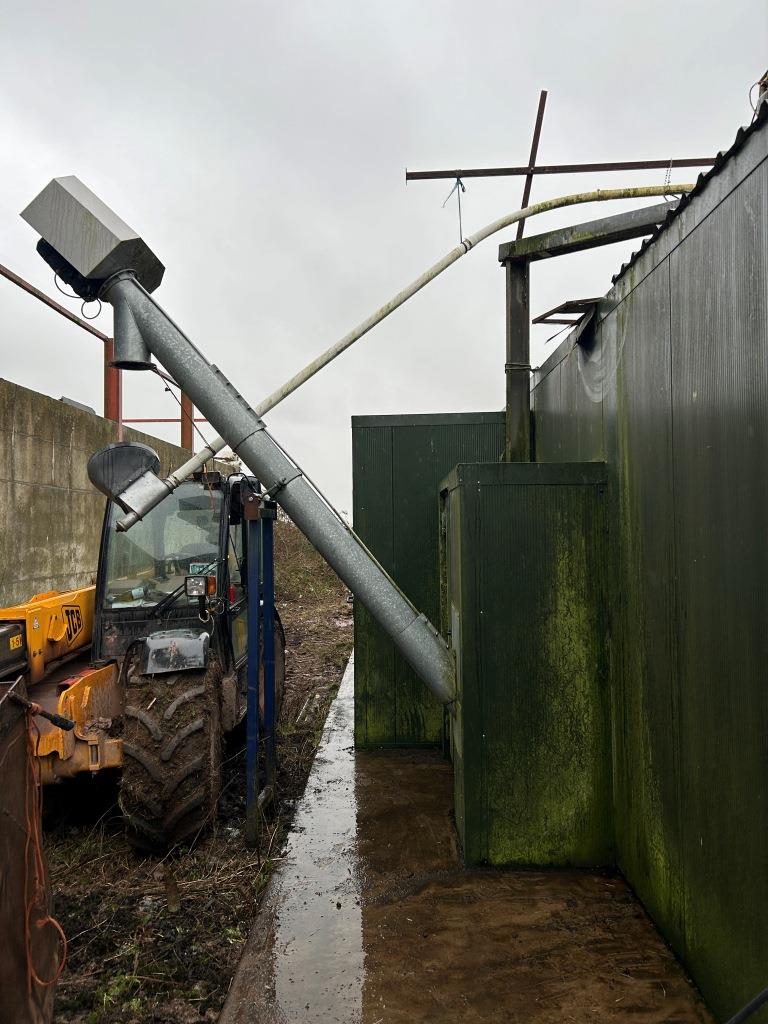

• Outlet screw conveyor for dry digestate
• Storage buffer container for dried material with screw
• Moving-Mixer unit made from 321 (V2A) stainless steel, installed on top of the front side of belt
• Substrate input (8-10% dm)
• Pre-storage container approx. 1,000 L

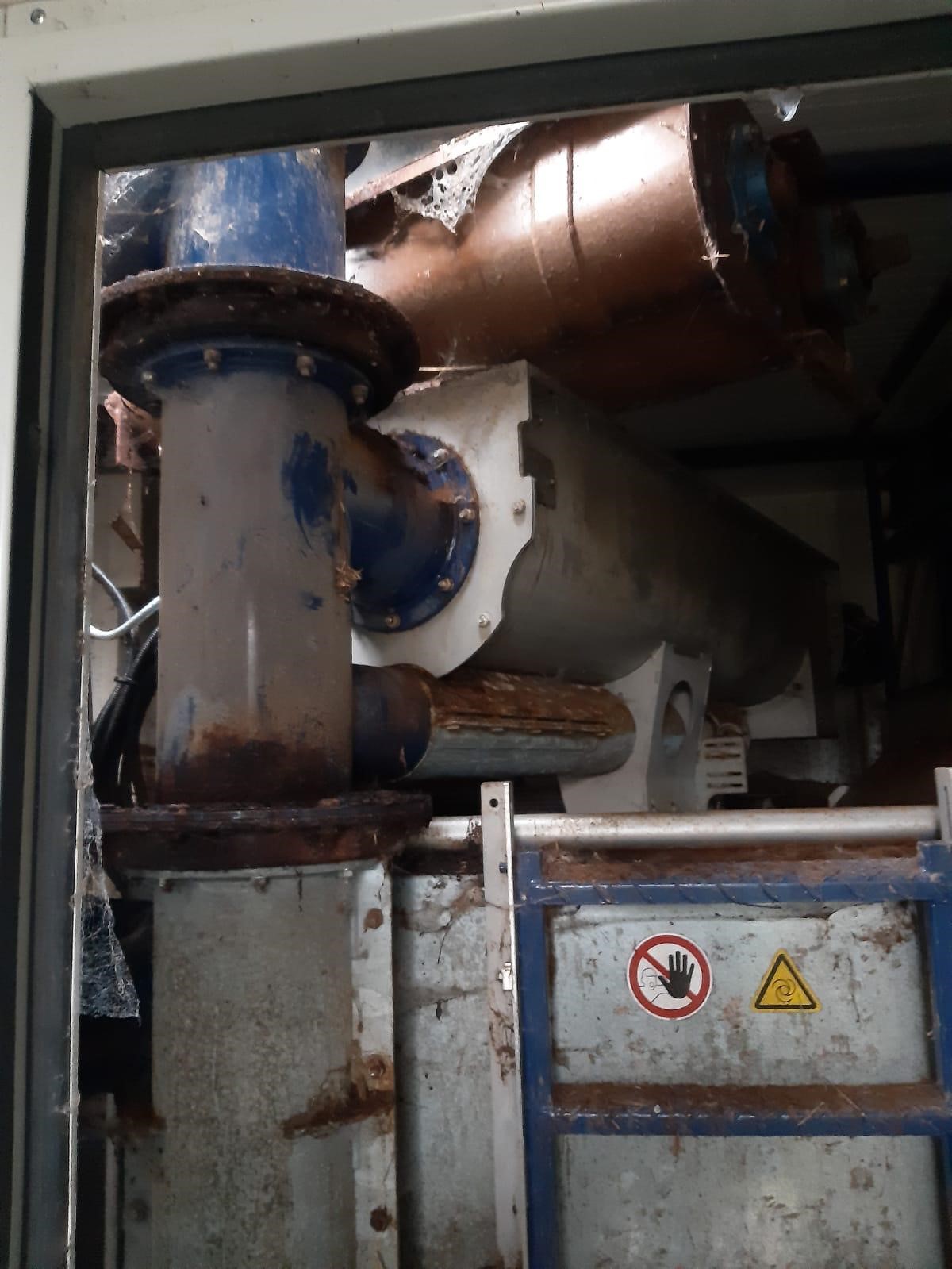

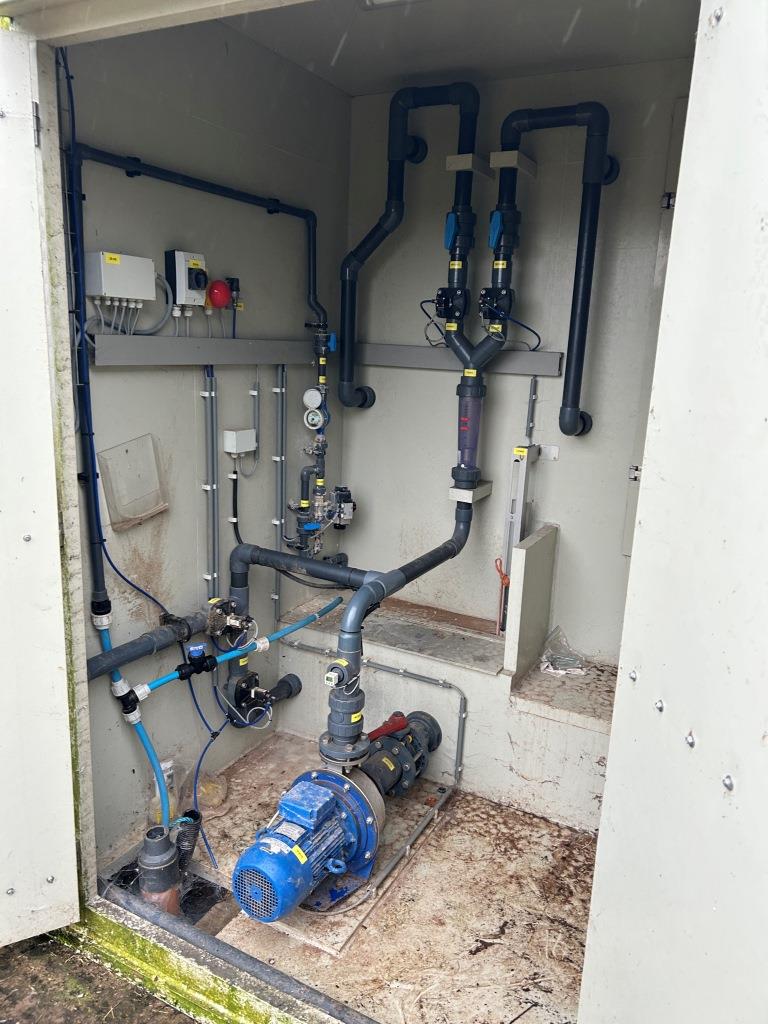

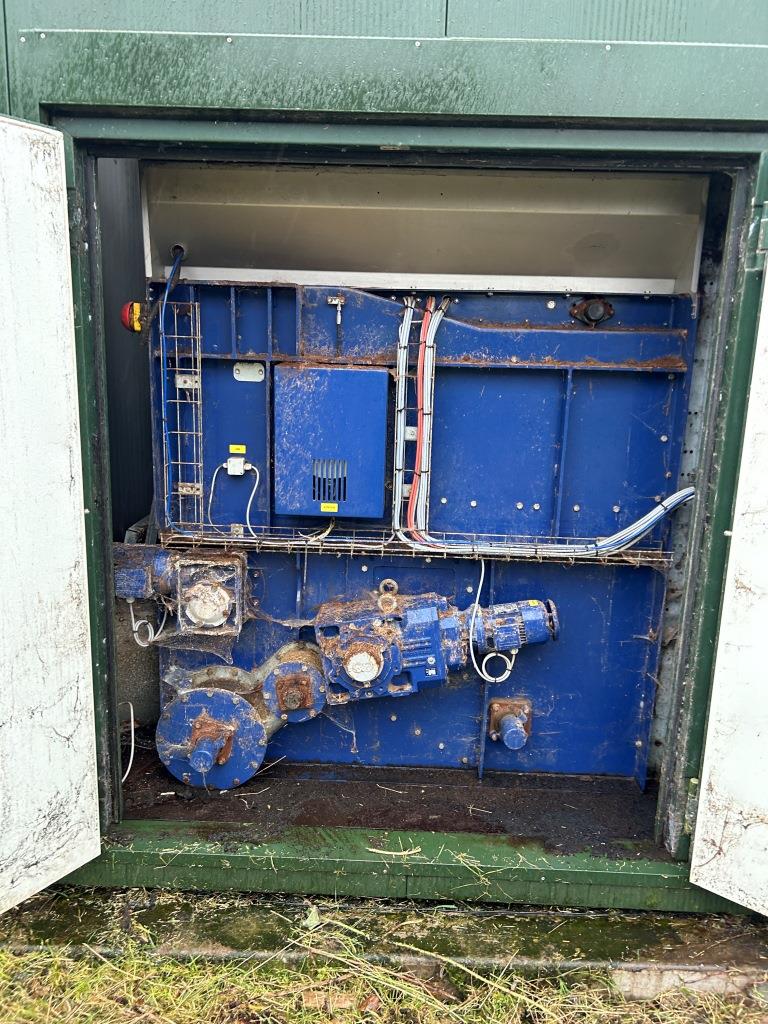

• Boerger lobe pump pump with frequency controller to pump digestate to mix unit
• Plastic pipes and accessories
• Fan system: 2 x fans, 3,0 kW each, 900 rpm. with frequency controller
• Fan controller based on return water temperature

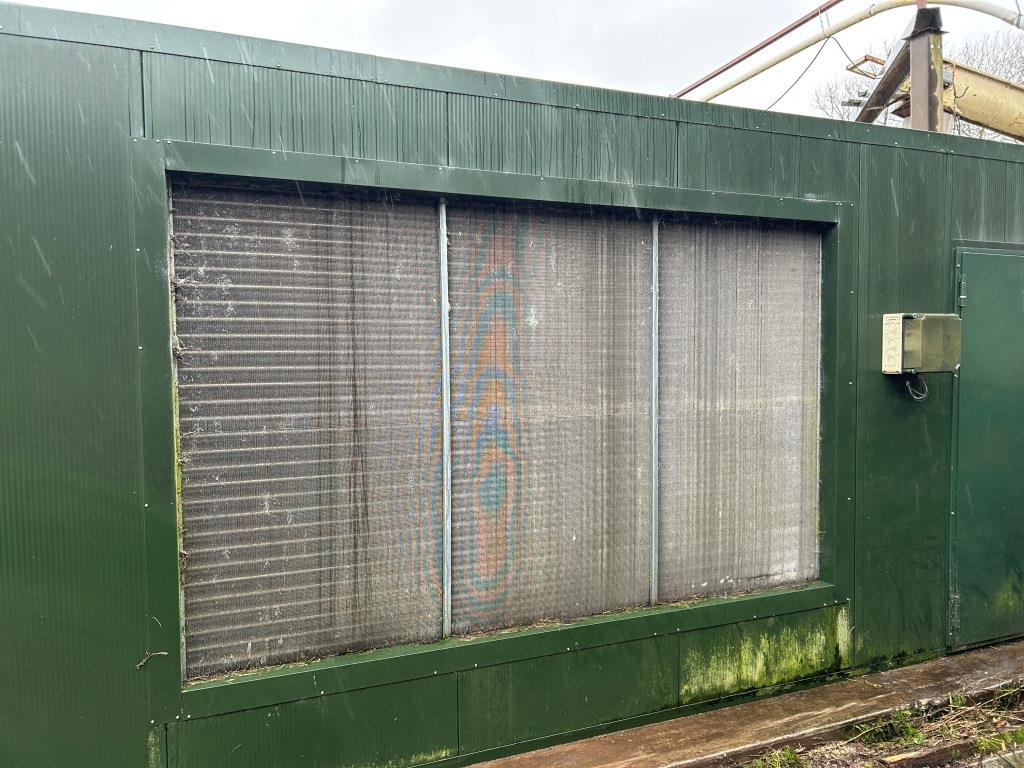

• Heat exchanger Cu/al, 80/60, 20/67, 30.000Nm3/h, approx. 300 kW
• Air ducts: Ducts built from insulated panels, aluminum coated, core PU
• Air cleaning: Wet system to remove dust from exhaust air

All technical documentation included in physical and electronic format

This is a rare opportunity to purchase a complete drying system at a substantial discount compared to new equipment

Appx 1000 working hours recorded

Availability: Immediate

Location: England, West Midlands. Closest airports Birmingham / Bristol

Please call to arrange an inspection
