Description

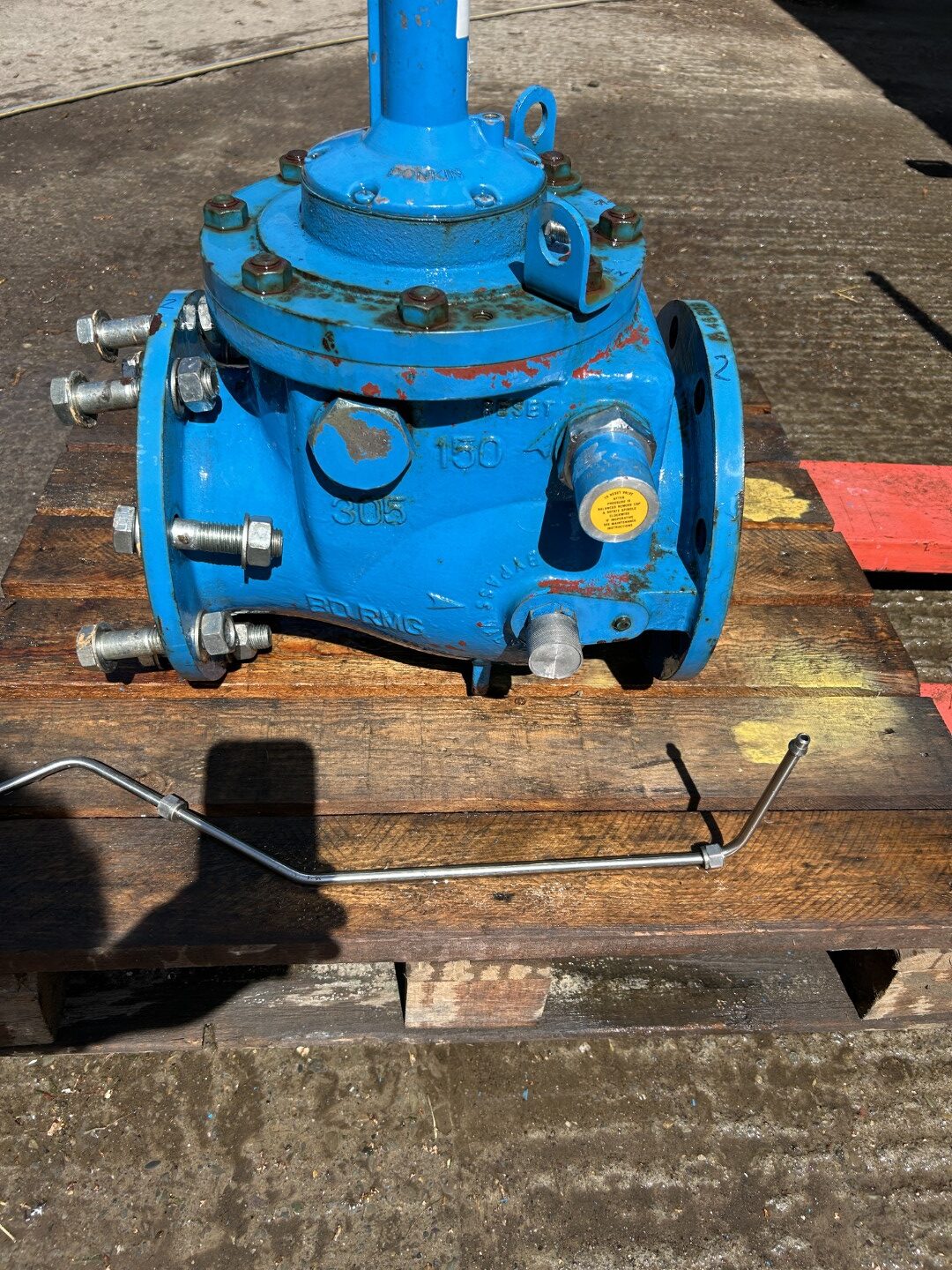

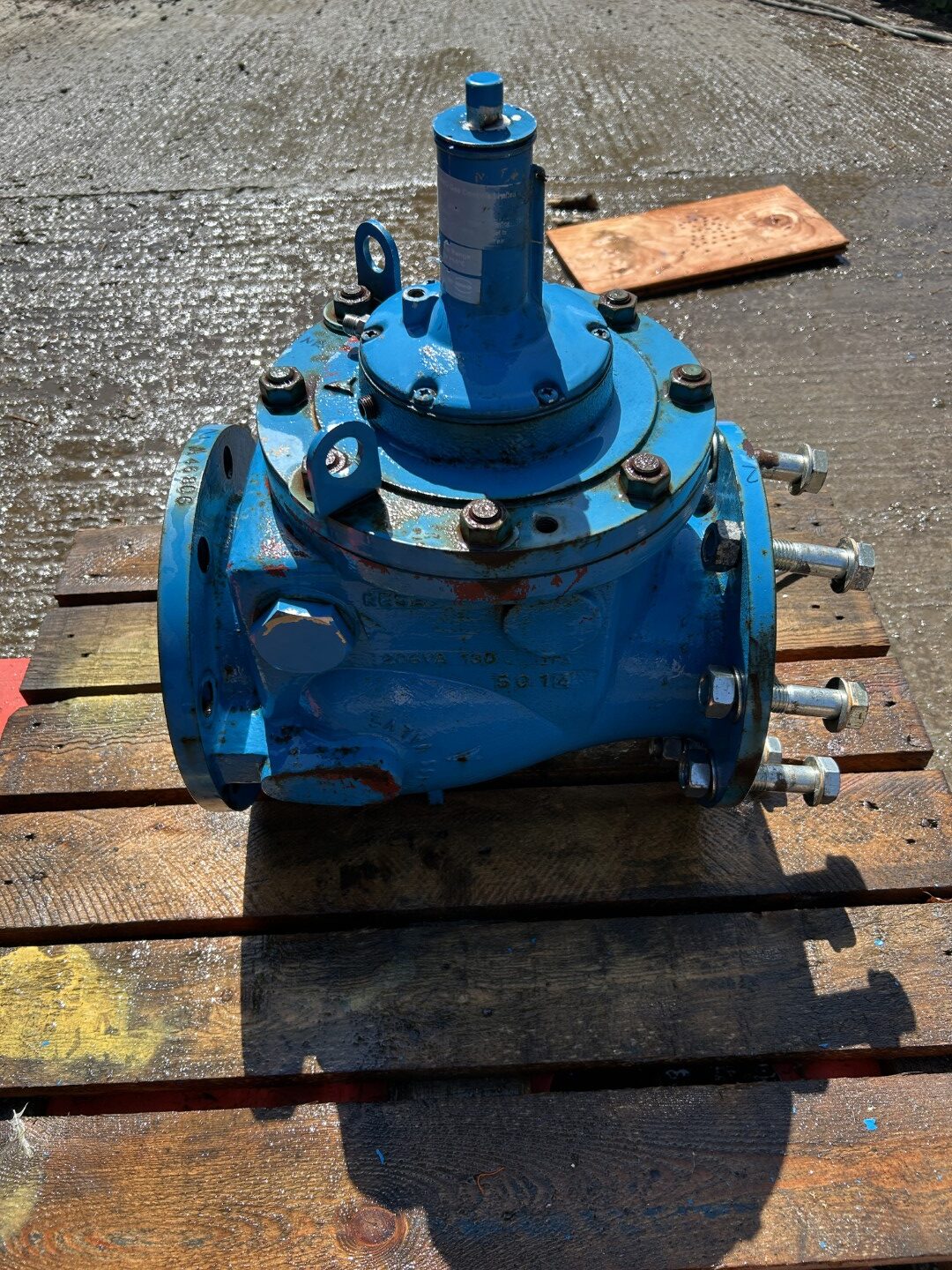

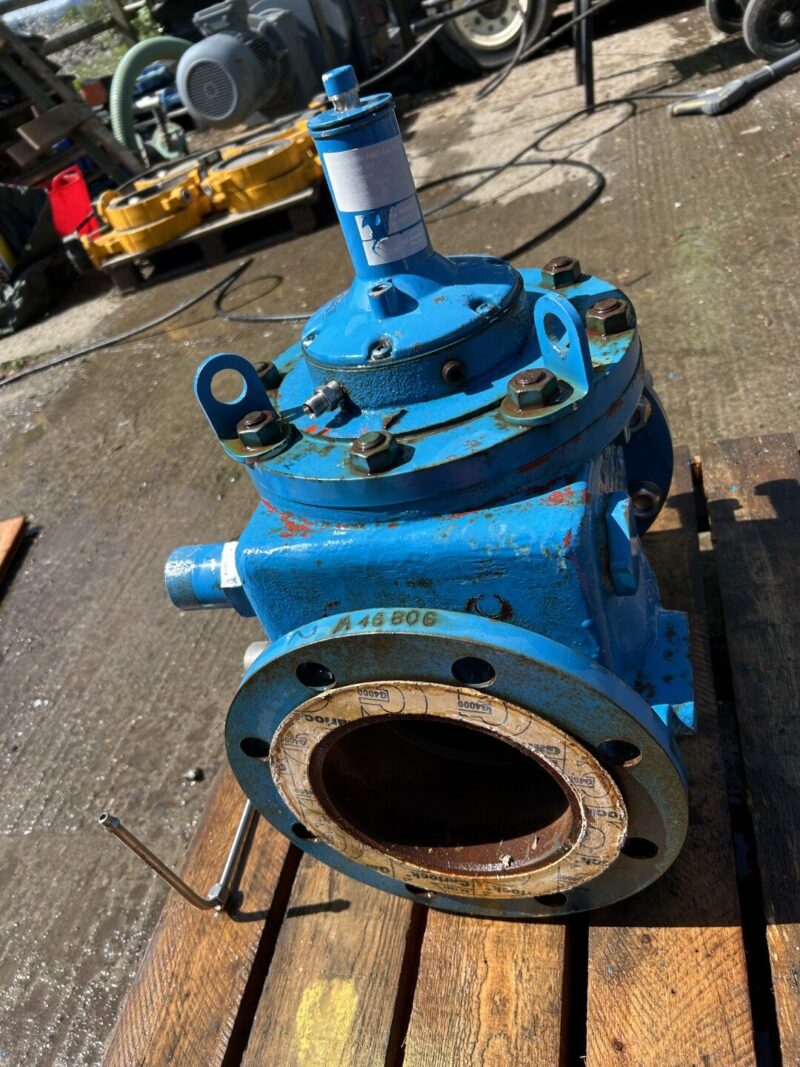

Safety Shutoff VAlve – DN150

RMG Donkin  305 safety shutoff valve:  Single inline orifice design, overpressure operated, with external control line connection, manual reset and pressure balancing bypass.

It is completely self-acting and requires no separate power source.

• May be used as a protection system for gas supplies and networks
• To be installed on the inlet pressure side with an external measuring line leading to the outlet pressure side in order to ensure automatic closing of the station in the event of overpressure
• Valve position indicator as standard, with remote indication available
• Push button for the pressure compensating valve
• Re-engage by hand
• Low-pressure loss
• Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
• CE registration according to PED

Removed from CNG Compressor

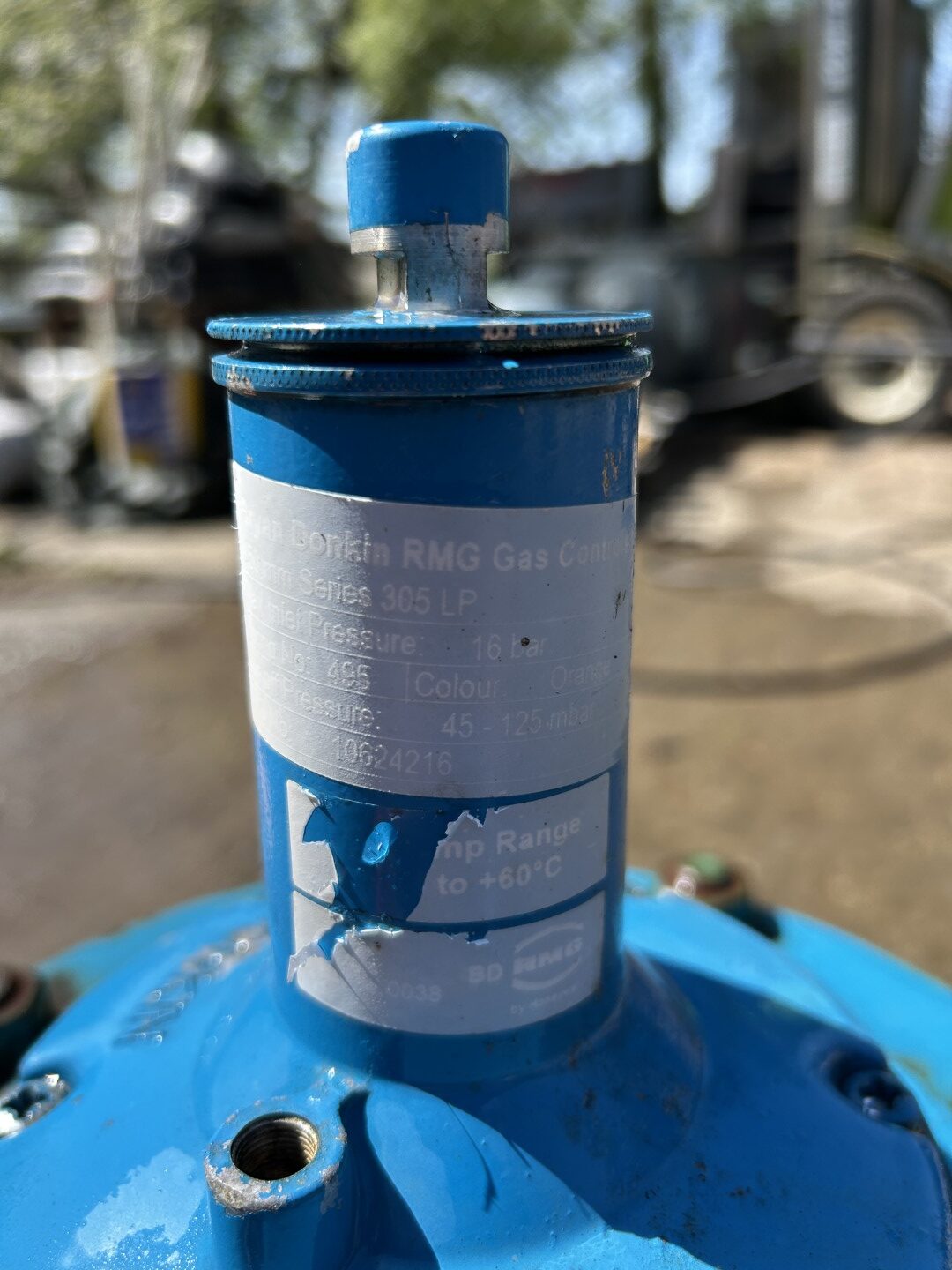

Set for 45-125mbar

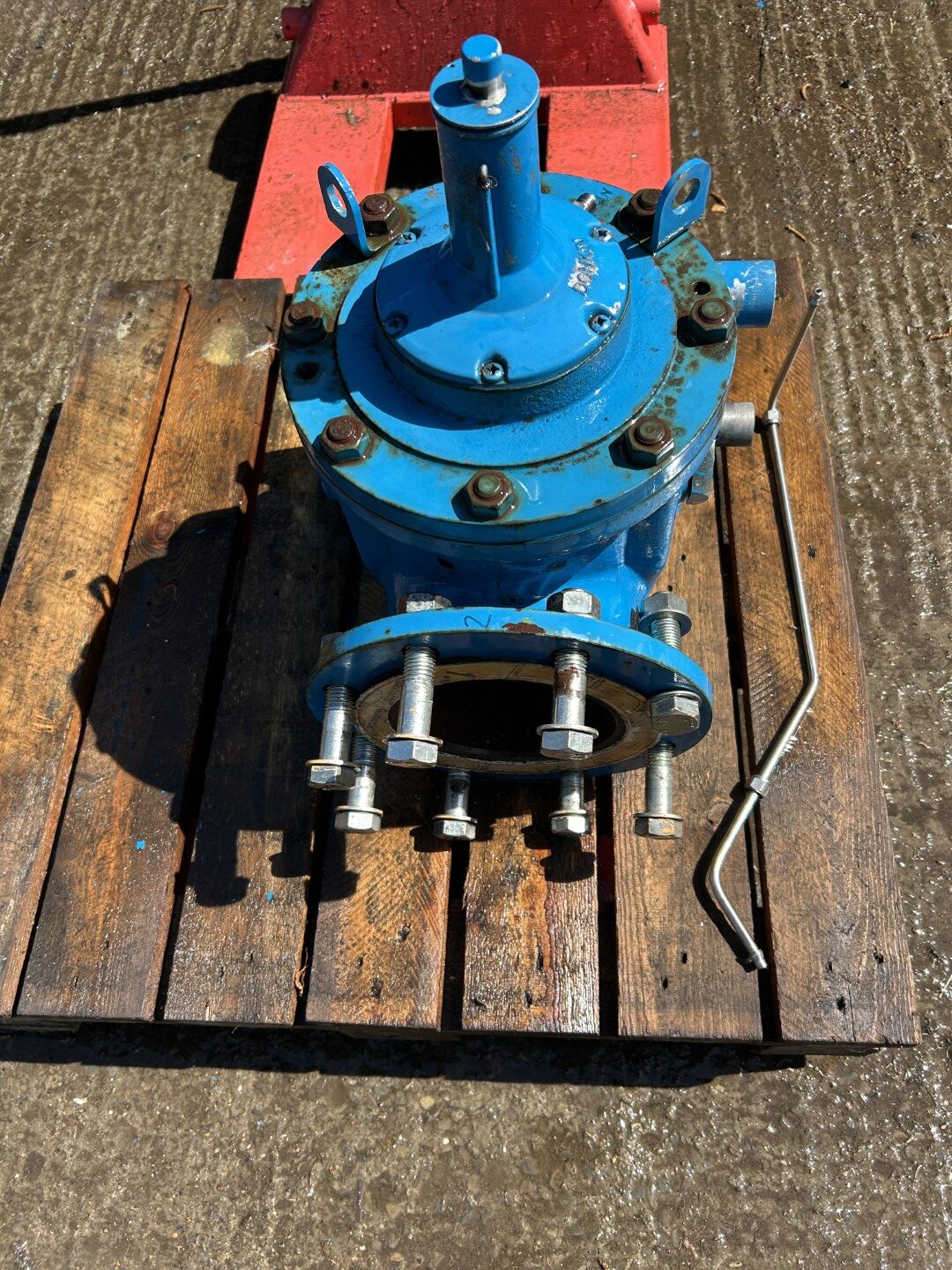

Stainless steel sensing line included

Available immediately

Can deliver at cost
