Description

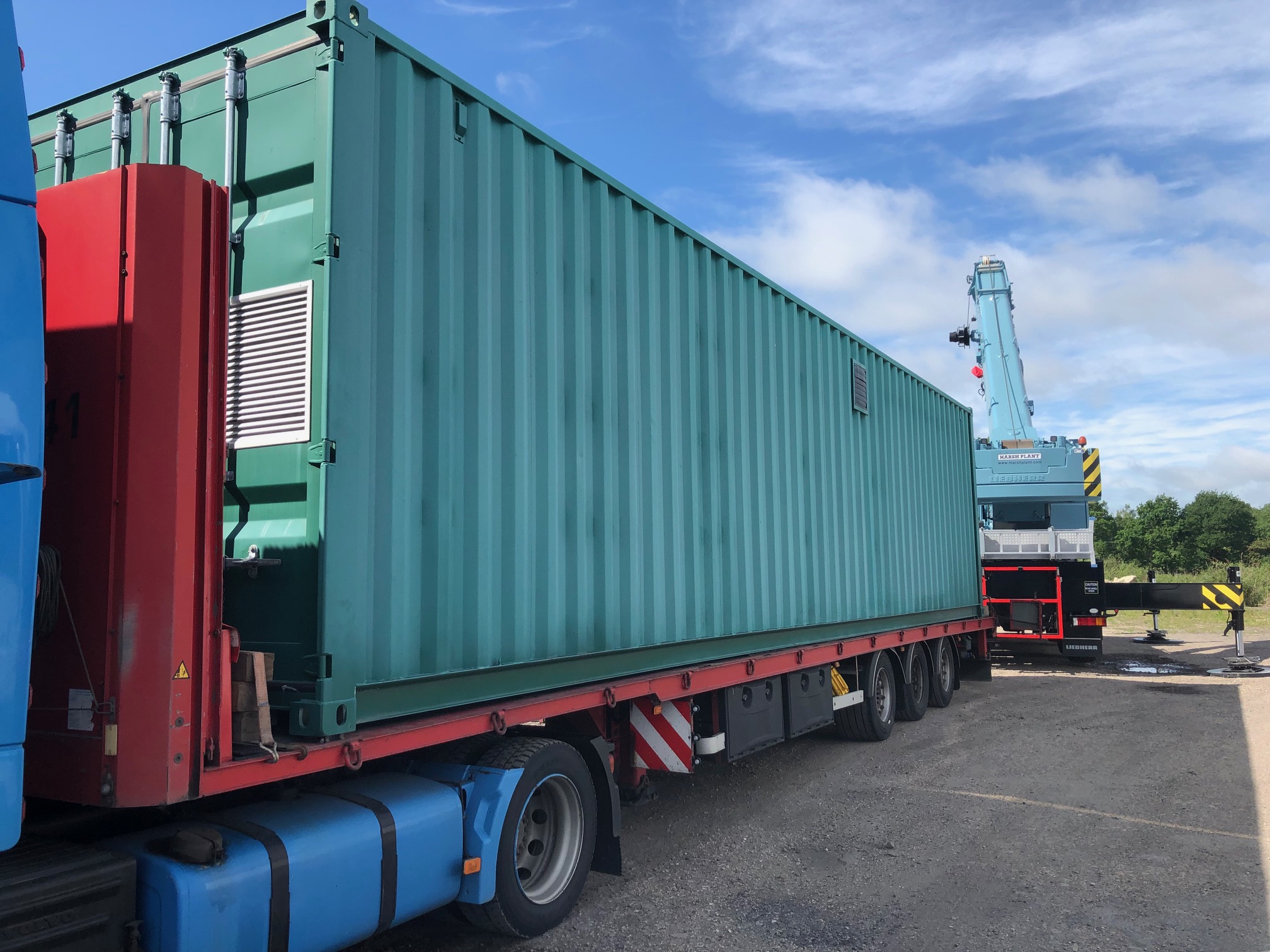

Containerised Pump room – 2 x Wangen KL65S 11kW 40m3/hr pumps and valves – Never used

Delivered from cancelled biogas project, never used, never installed on site.

Container has been fitted out to extremely high standard with internal insulation, lighting and cable containment.

Divided into control room and pump room with internal interconnecting door.

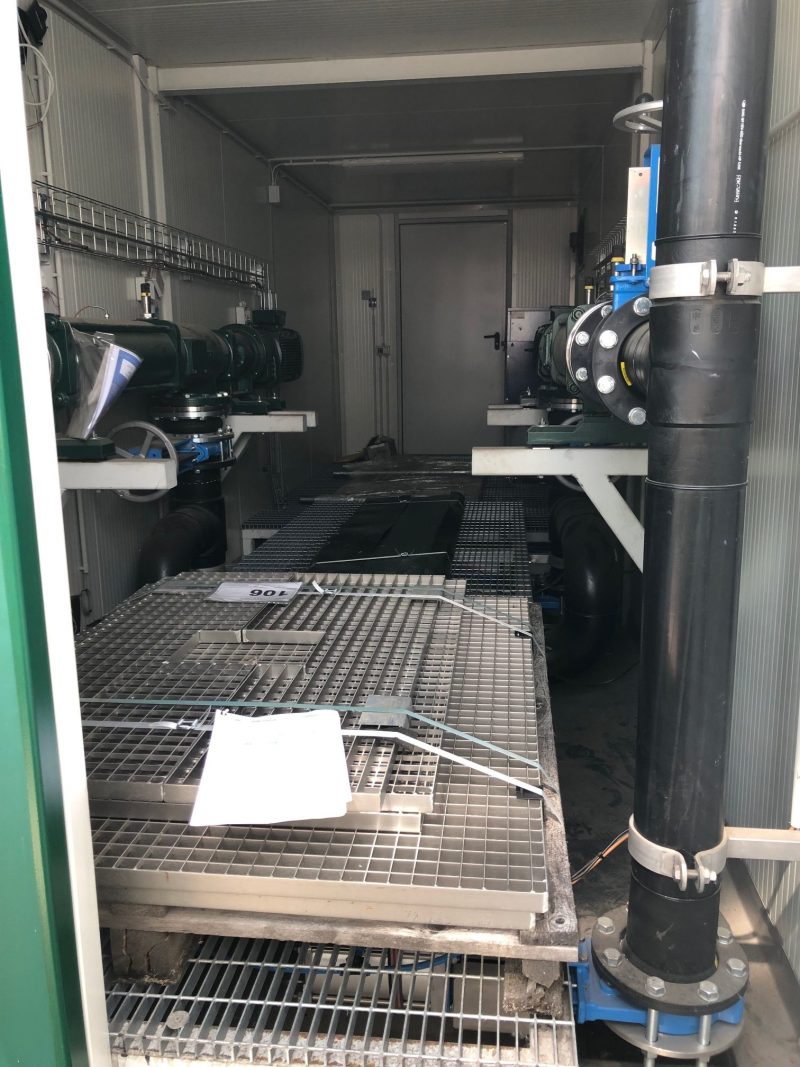

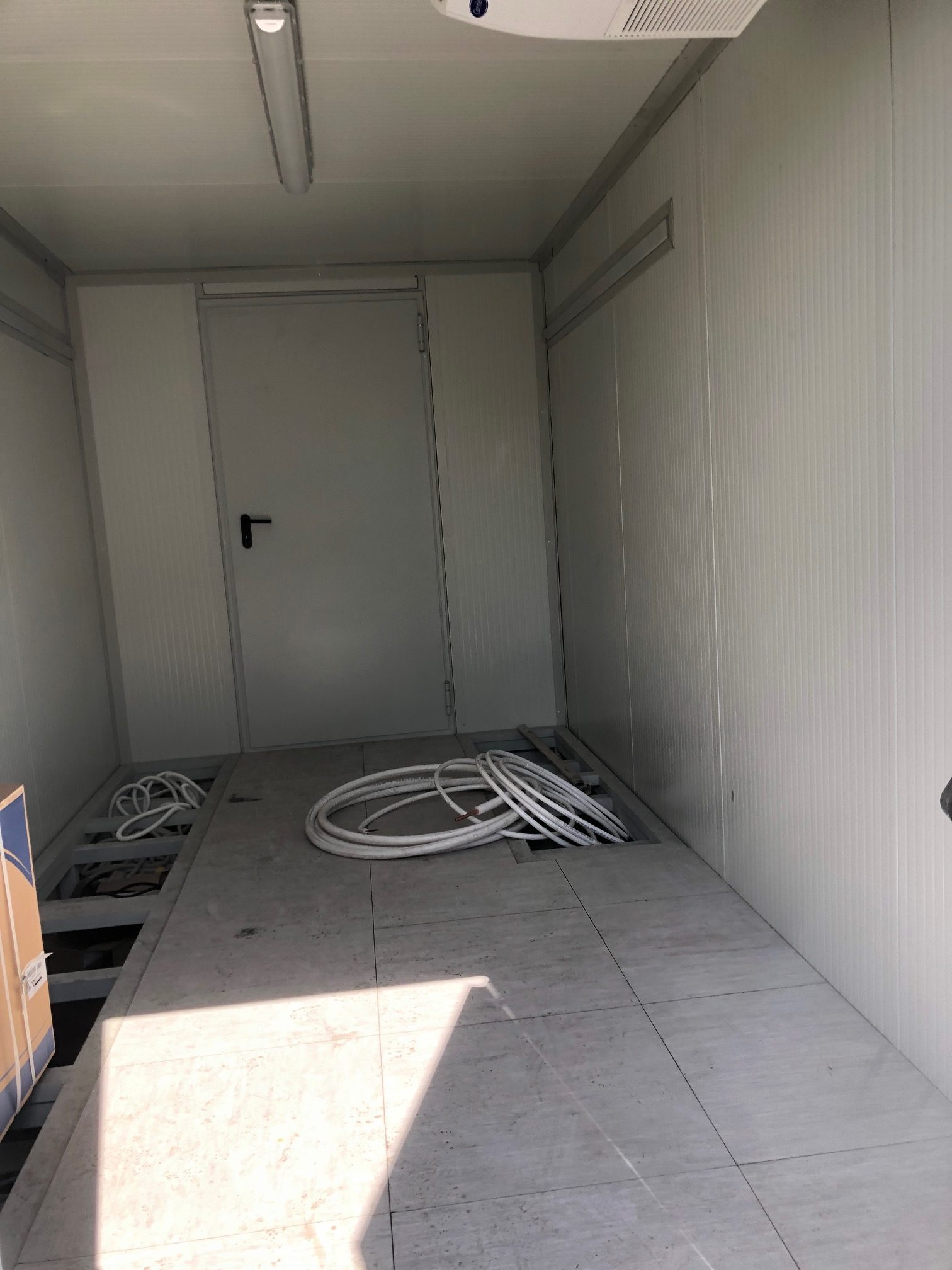

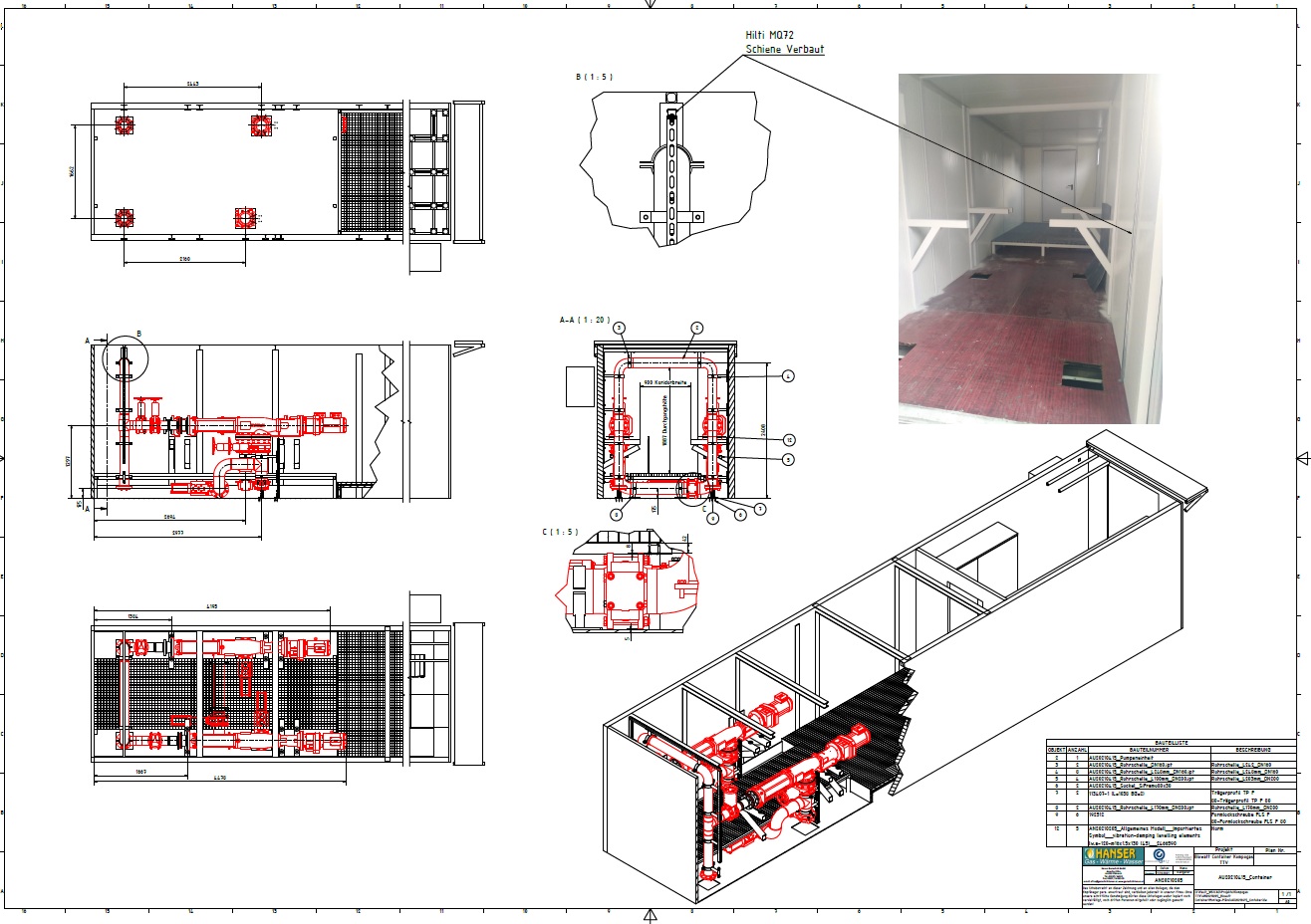

One end of container is fitted out to take control panels with cutouts in floor, opposite end has 2 x Wangen pumps and pipework to enable digestate transfer

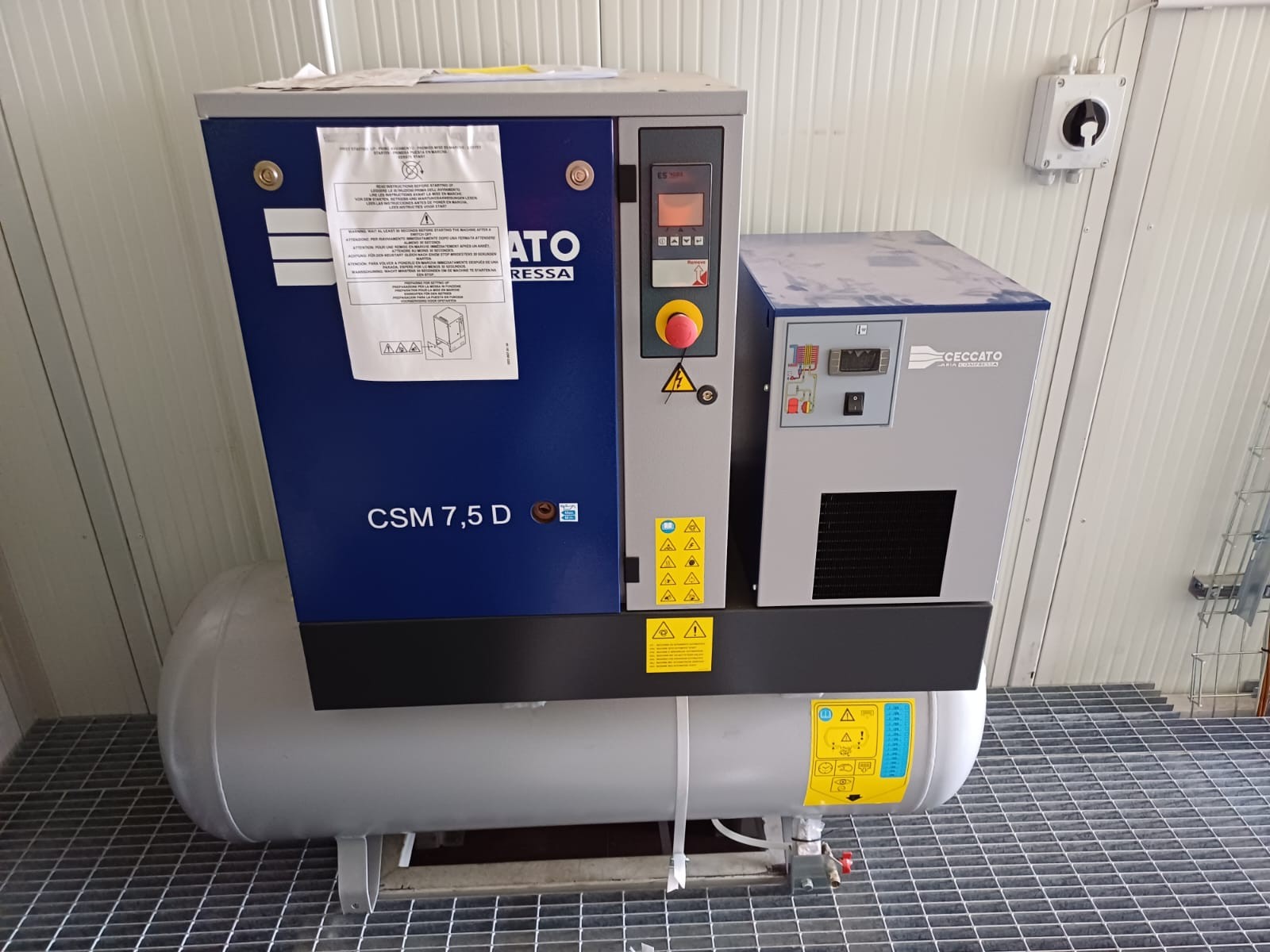

Includes air compressor and drier

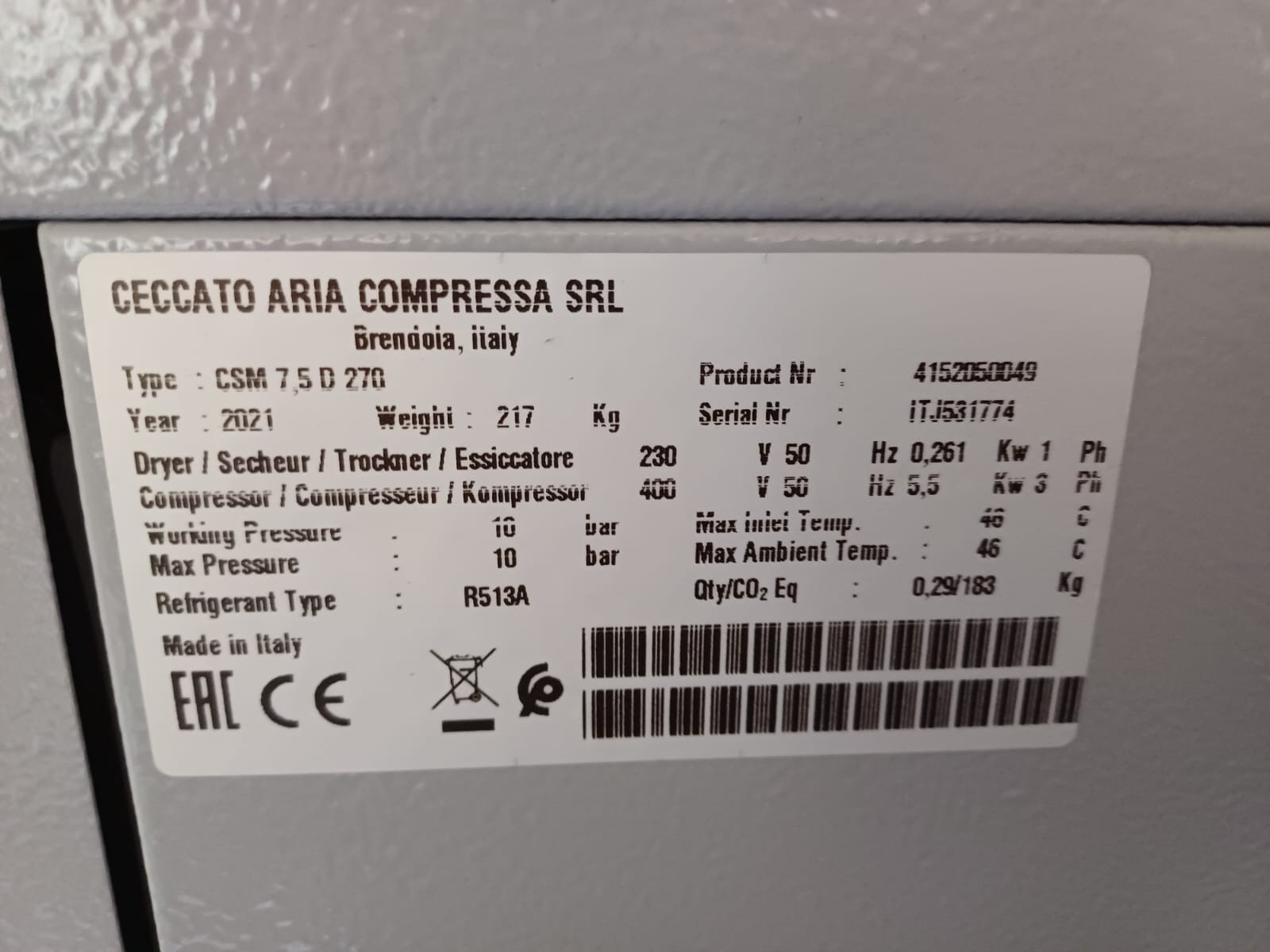

Air compressor details:  5.5kW 3ph, Drier 1kW single phase.

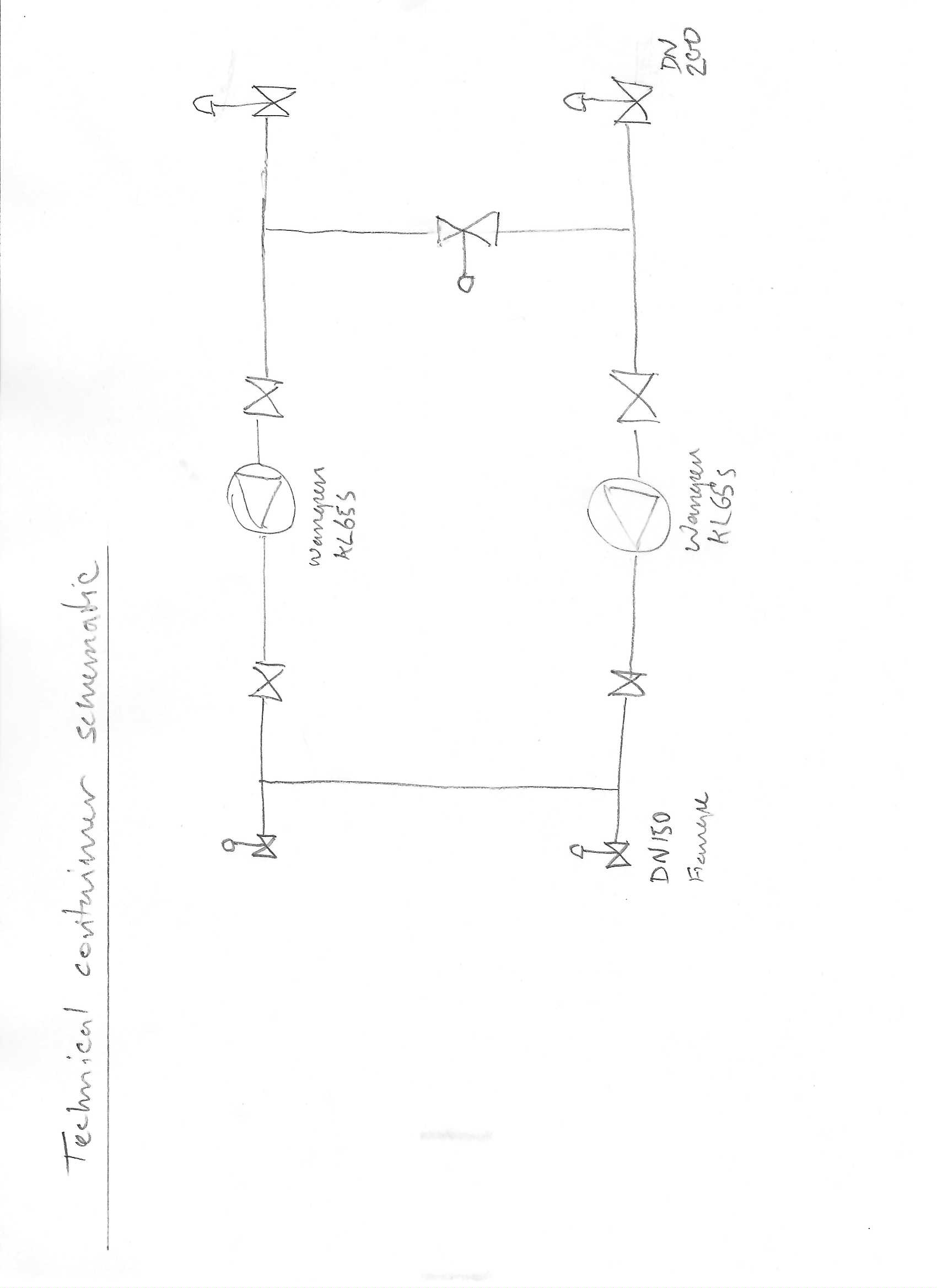

Pump room equipment:

2 x Floor inlets for DN200 connections (1 either side)

2 x Floor outlets for DN150 connections (1 either side)

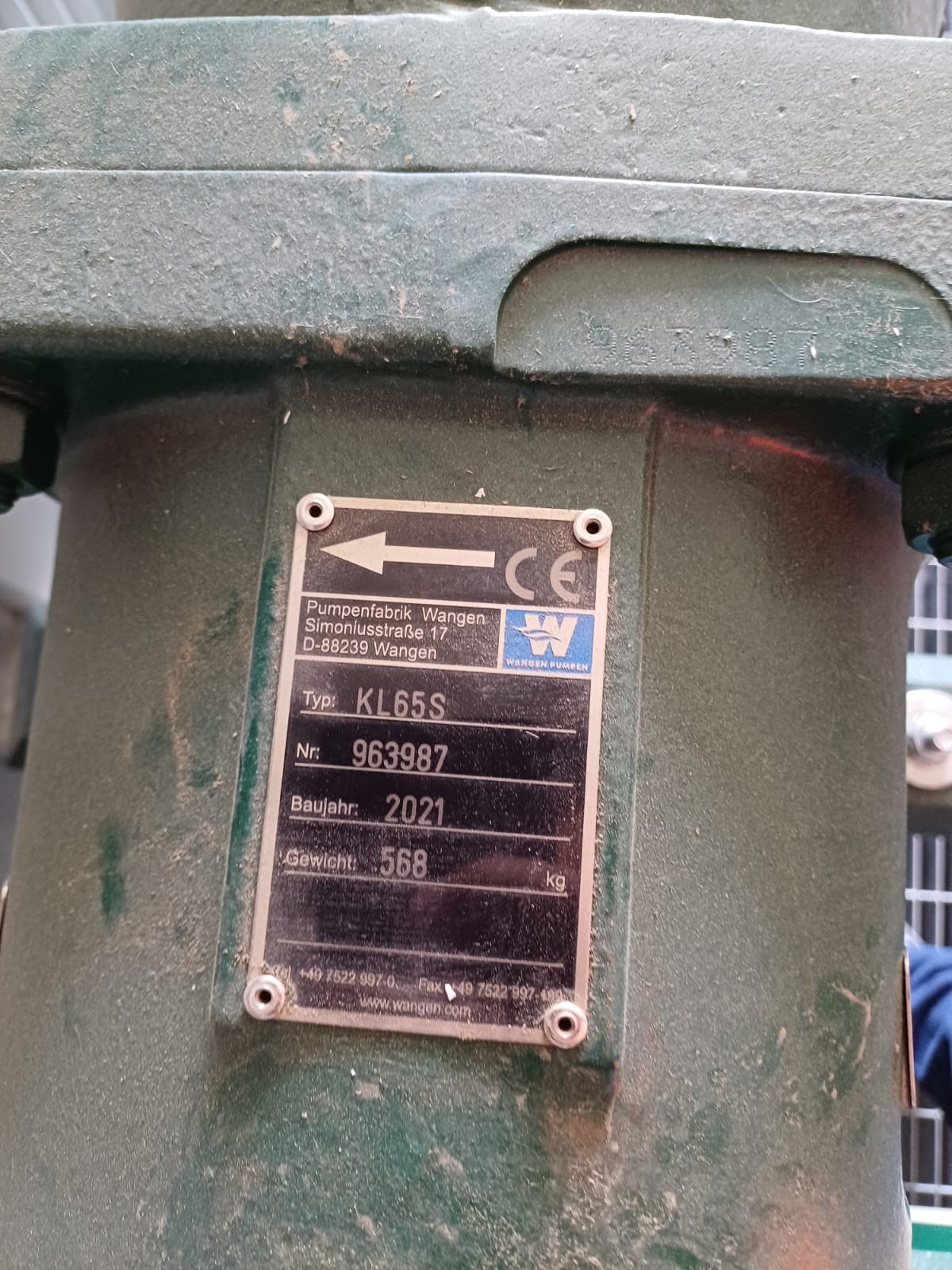

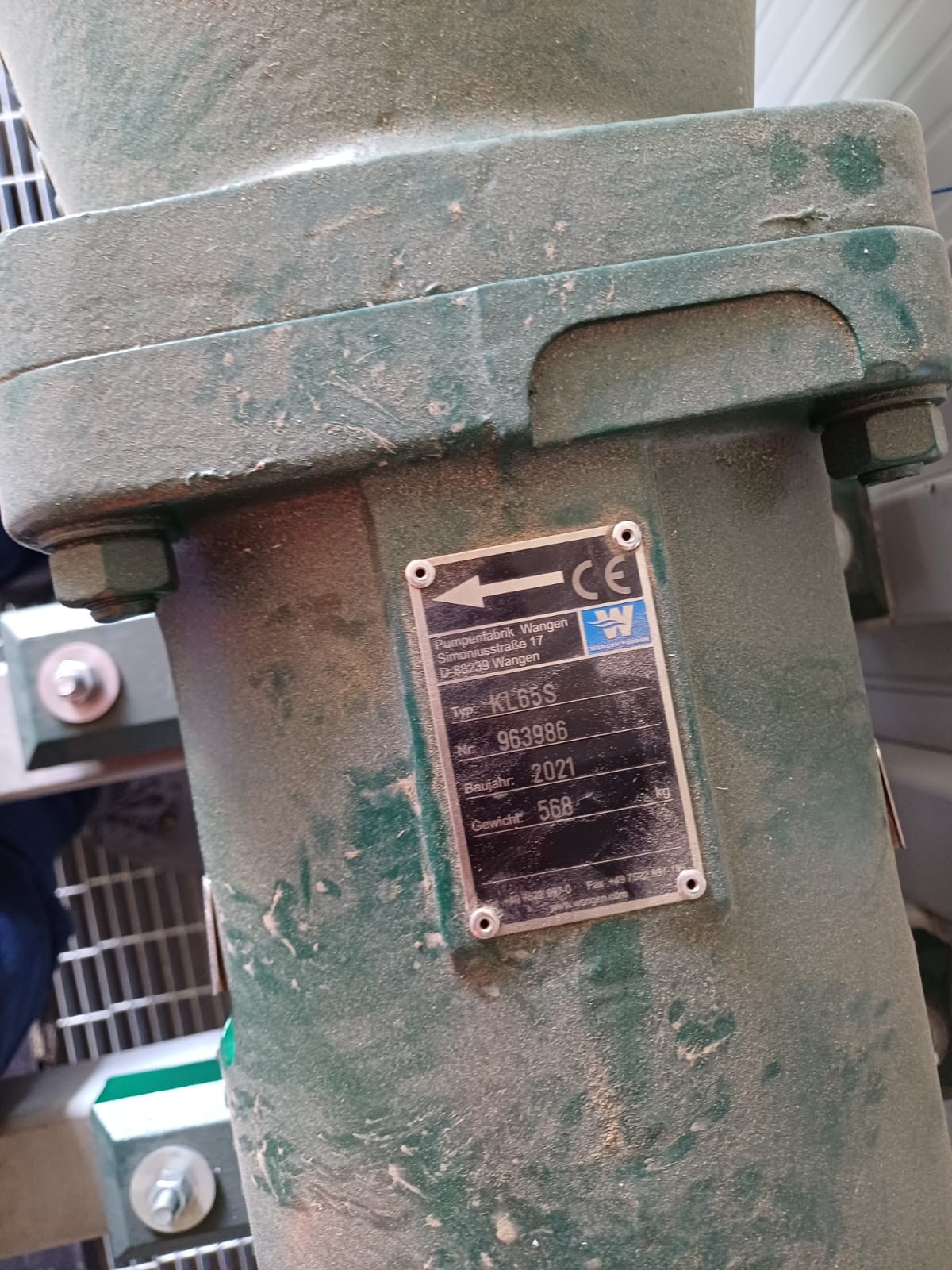

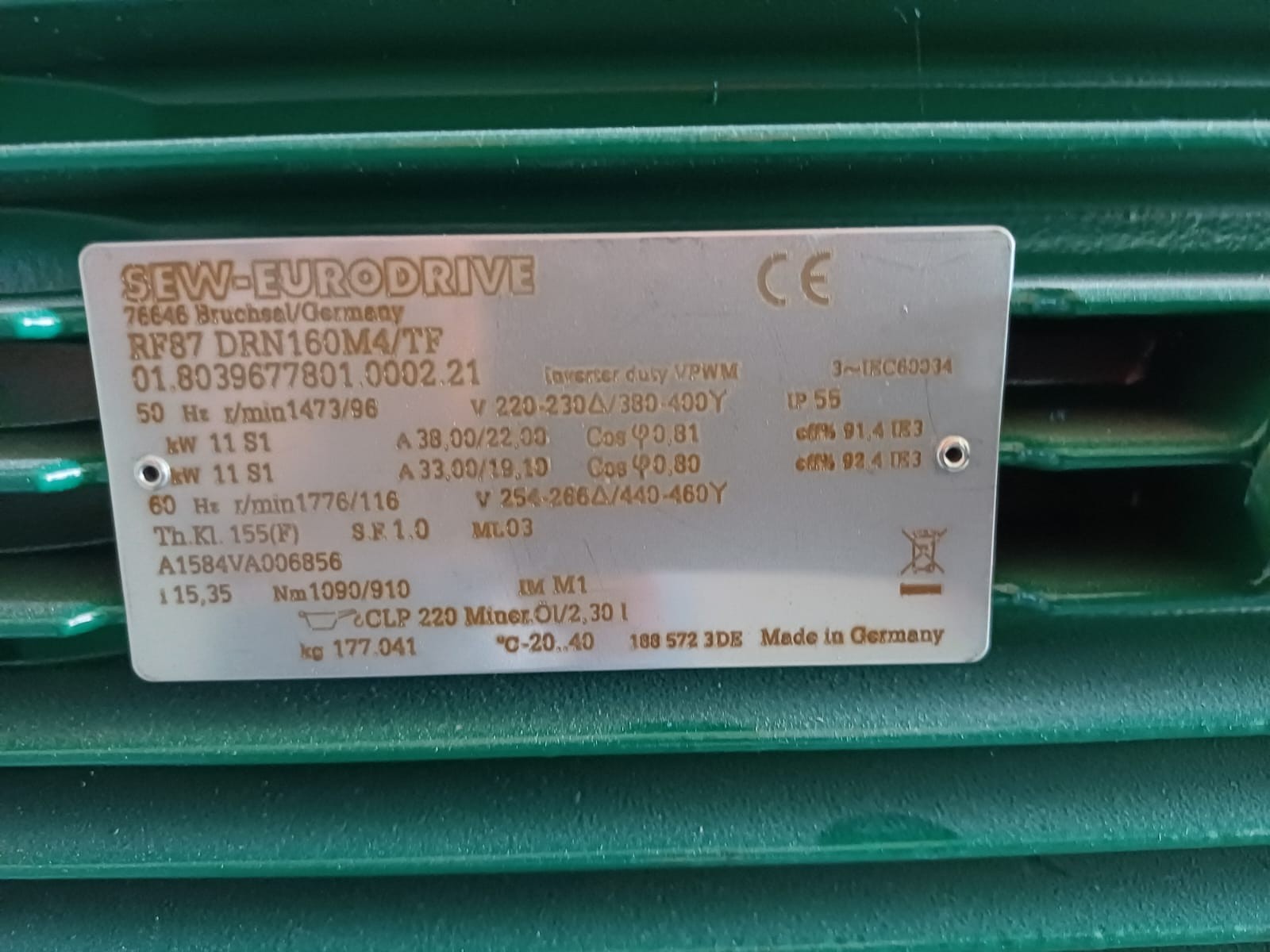

2 x Wangen KL65S pumps with pressure and temperature transducers

Manual pump isolation valves (Orbinox EB Series, non-rising stem), 2 per pump

Vibration dampers fitted at inlet and outlet of pumps

Double acting air operated knife gate valves on crossover pipework before inlet to pumps

Double acting air operated knife gate valves on delivery pipework connections

Electrofusion welded HDPE pipework throughout

+++

Stainless Steel mesh grille floor

Ventilation grilled included

Door keys included

Stainless steel cable containment

+++

All installation to a very high quality

Total weight appx 10,000kg

+++

Available June 2025

Location:SW England

Please call to arrange an inspection
