Description

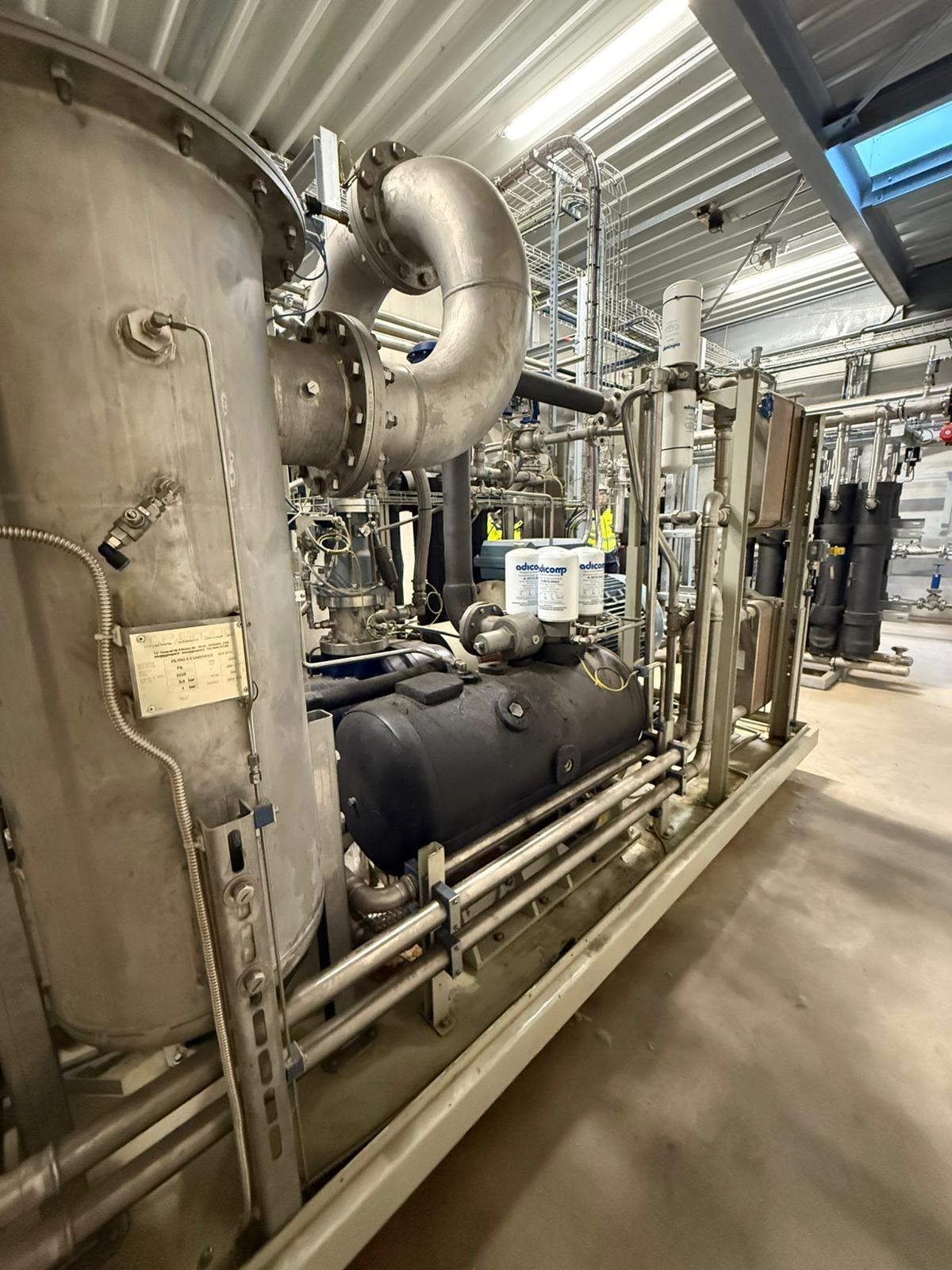

Complete Biogas Plus membrane biogas upgrading system with all ancillaries 1000m3/hr inlet

First class biogas upgrading system with all ancillaries for sale. Reason for sale is replacement with larger system due to plant expansion.

Includes odorant system and chromatograph for grid entry.

Non-containerised so can be installed in a building

Ready to work.

Scope of supply

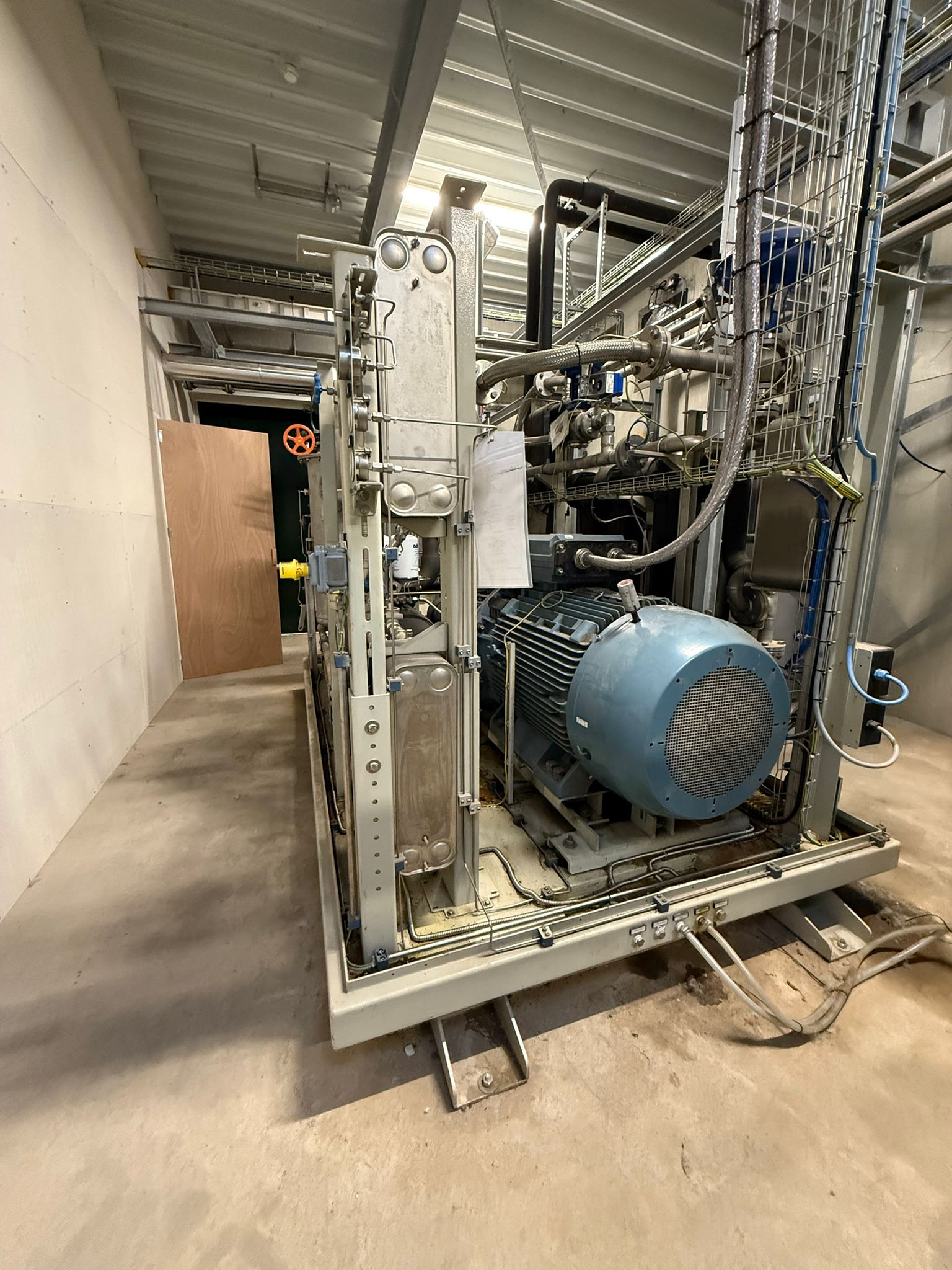

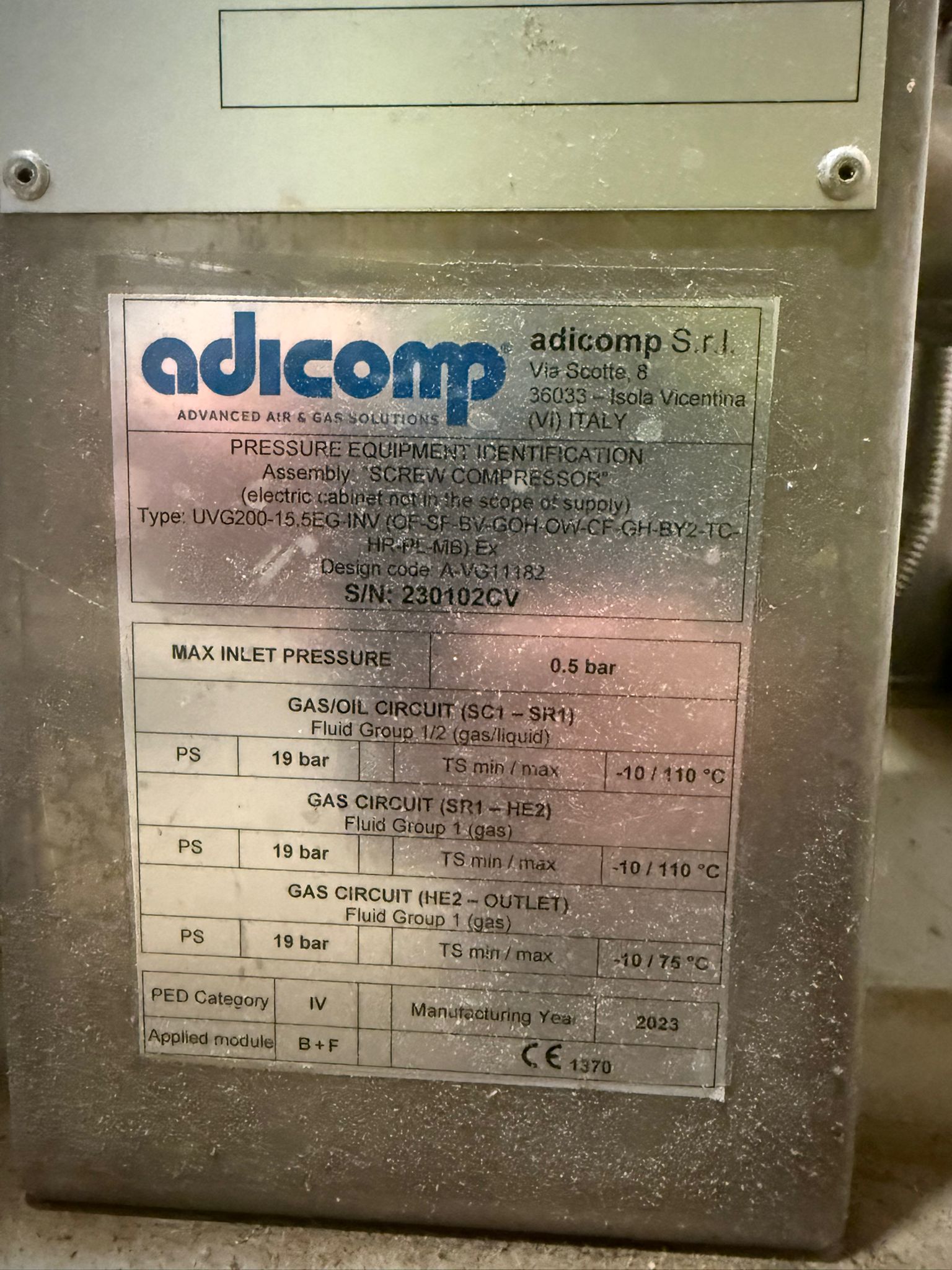

1. Compressor: Adicomp screw compressor (UVG-200)
2. Utilities:
   1. 1x chiller
   2. 1x condenser
3. Control panel and automation system including
   1. Touch screen
4. Equipped with Ethernet connection for remote access via internet. The entire installation can be controlled through remote access. SCADA features extensive trending and reporting options.
5. System is prepared for future CO2 liquification.
6. Bio2Net grid injection station
   1. 1x gas chromatograph ABB PGC1000
   2. 1x H2S sensor
   3. 1x Dew point transmitter

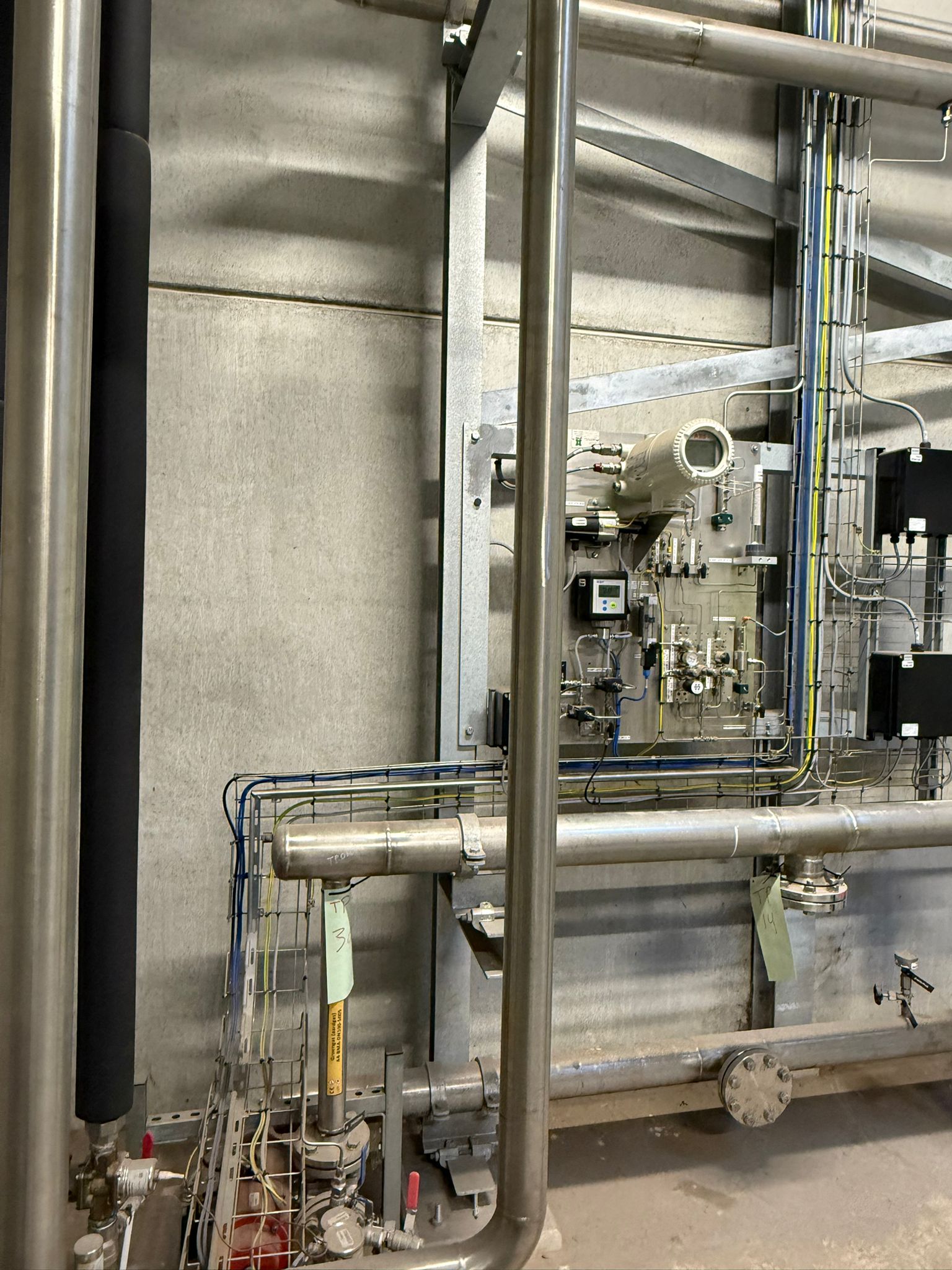

   4. 1x Sample conditioning panel with filters, reducer, safety relief valves, 1x Double pressure reduction station with pressure switches for two carrier second gas cylinder if the first cylinder is empty.
   5. 1x Single pressure reduction station for calibration gas cylinder
   6. Gas Chromatograph ABB PGC1000
7. •Pressure & Temperature transmitters
8. • 1x Odorization system
9. • Control panel (backplate removed from cabinet)with:
   1. PLC
   2. power distribution and switchgear
   3. facilities for remote access
   4. Touch-screen HMI
10. Biogas inlet pipewok

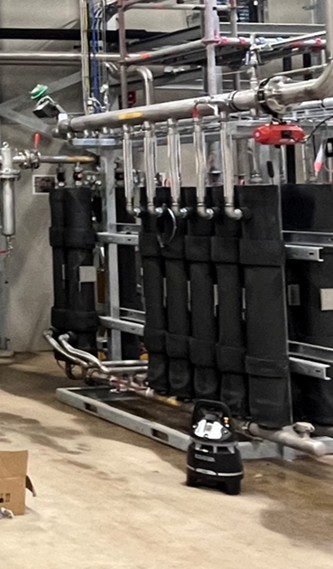

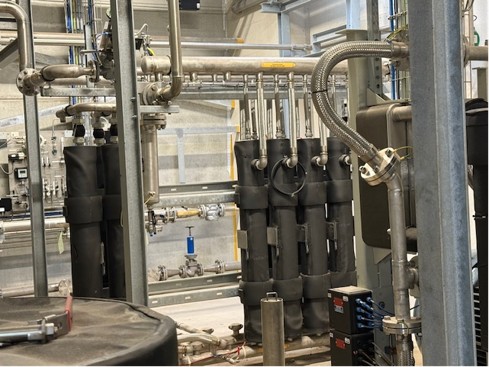

11. Membrane skid(s) and membranes

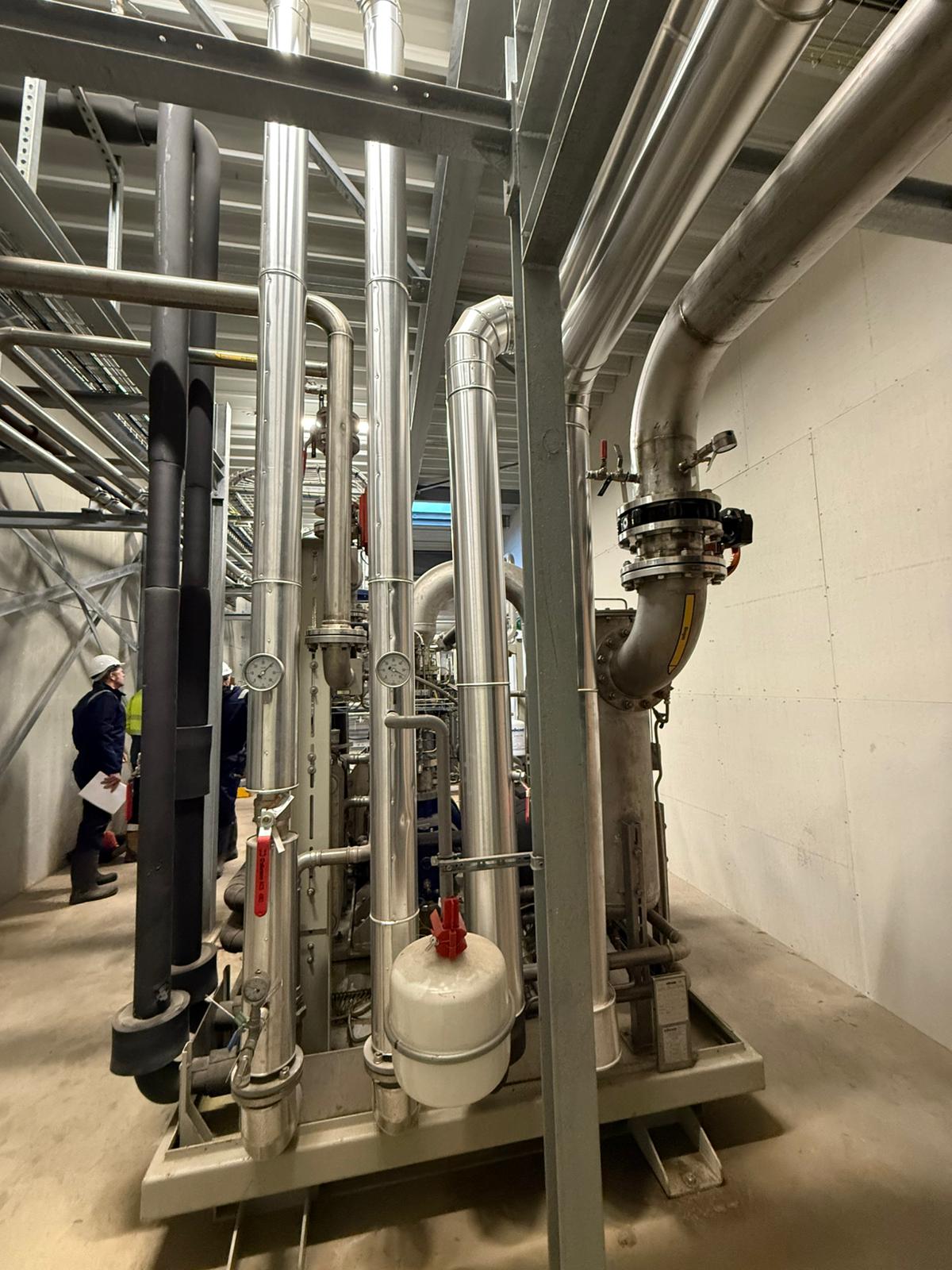

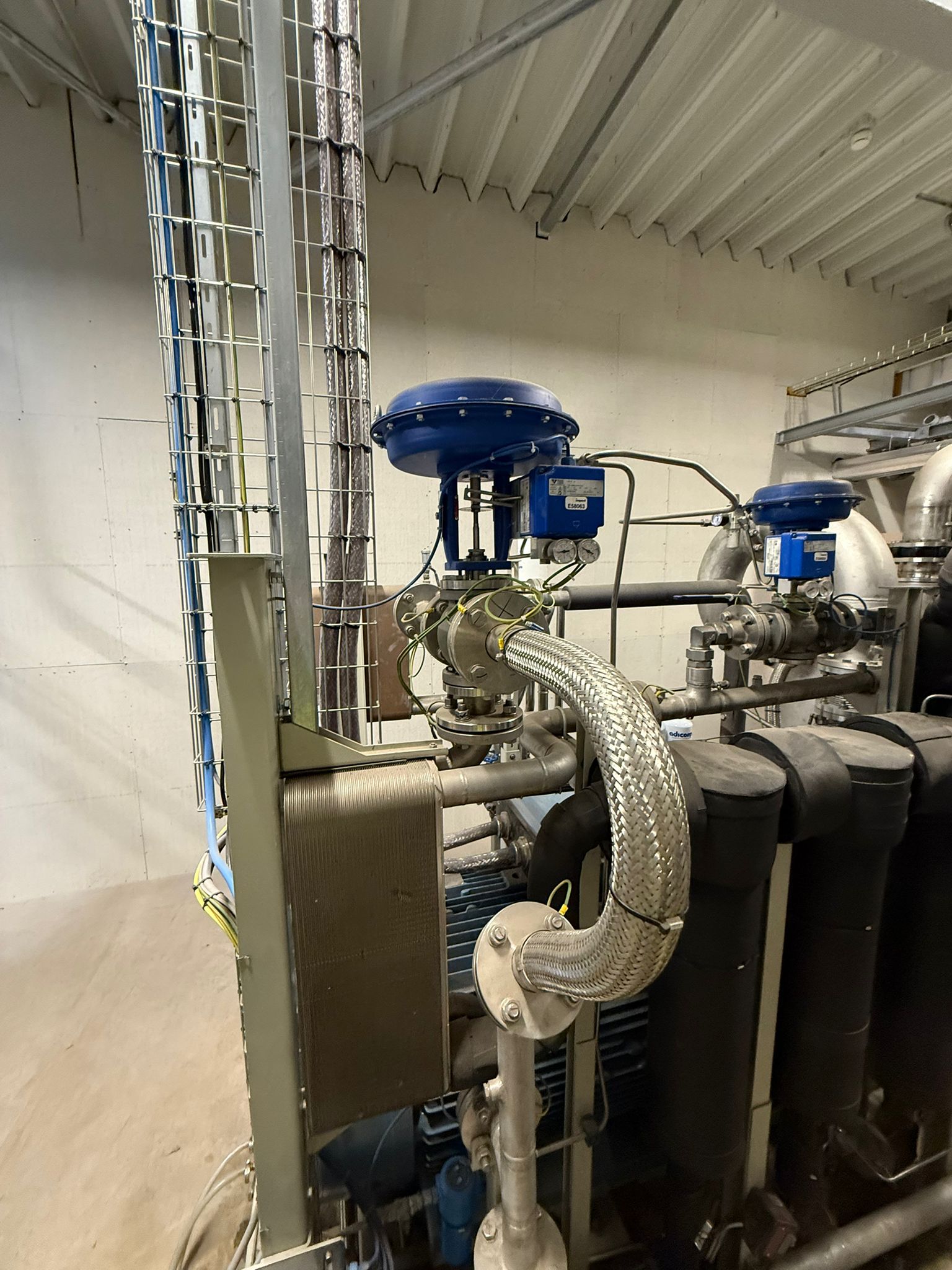

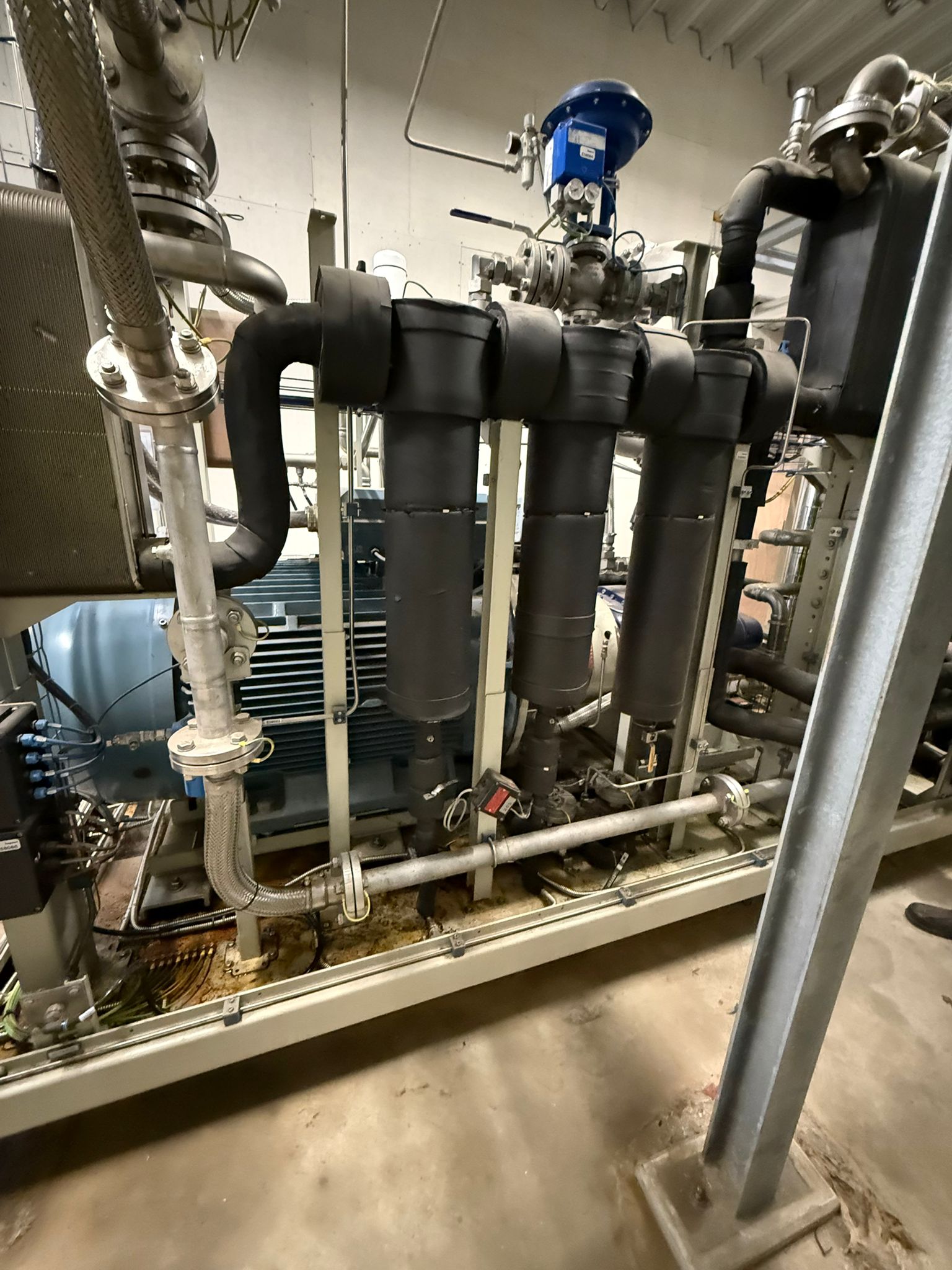

12. Inerconnecting pipework with valves and instrumentation
13. Instrumentation and interconnecting cabling

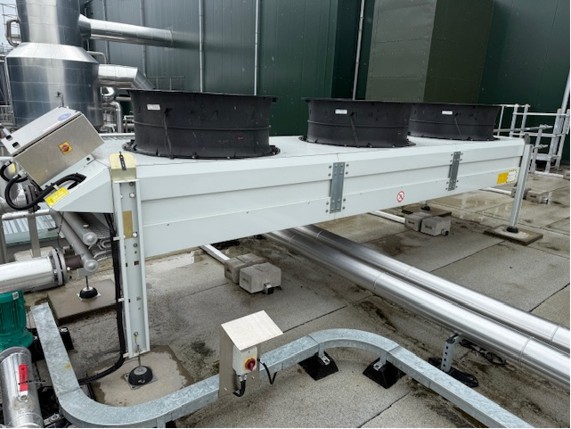

14. Heat rejection radiator, and water pipework including valves, instrumentation and circulating pump(s)

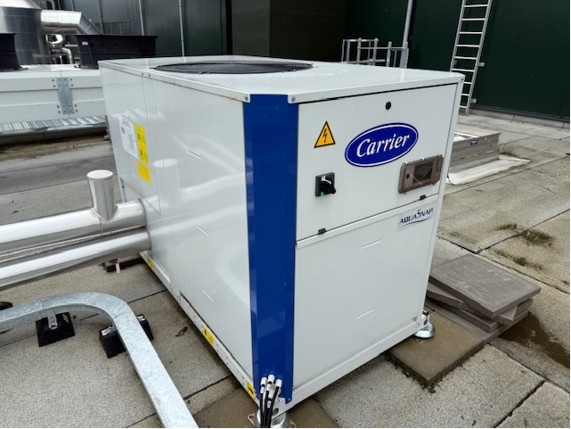

15. Chiller unit and inerconnecting pipework including valves, instrumentation and circulating pump(s)

Location: Netherlands

Available: From March 2026

Please call to arrange an inspection
