Description

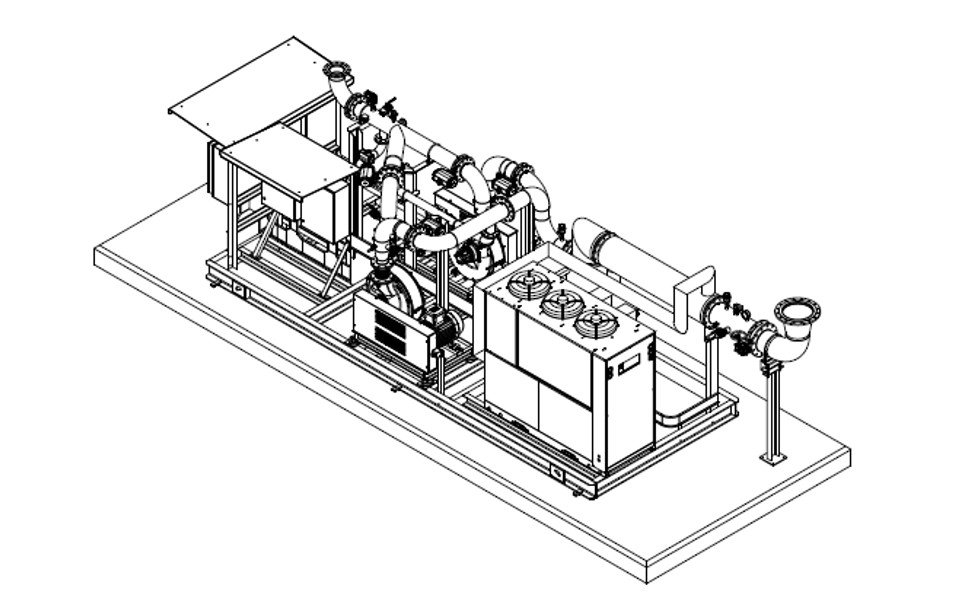

Uniflare Biogas dehumidification and booster skid for 2000Nm3/hr

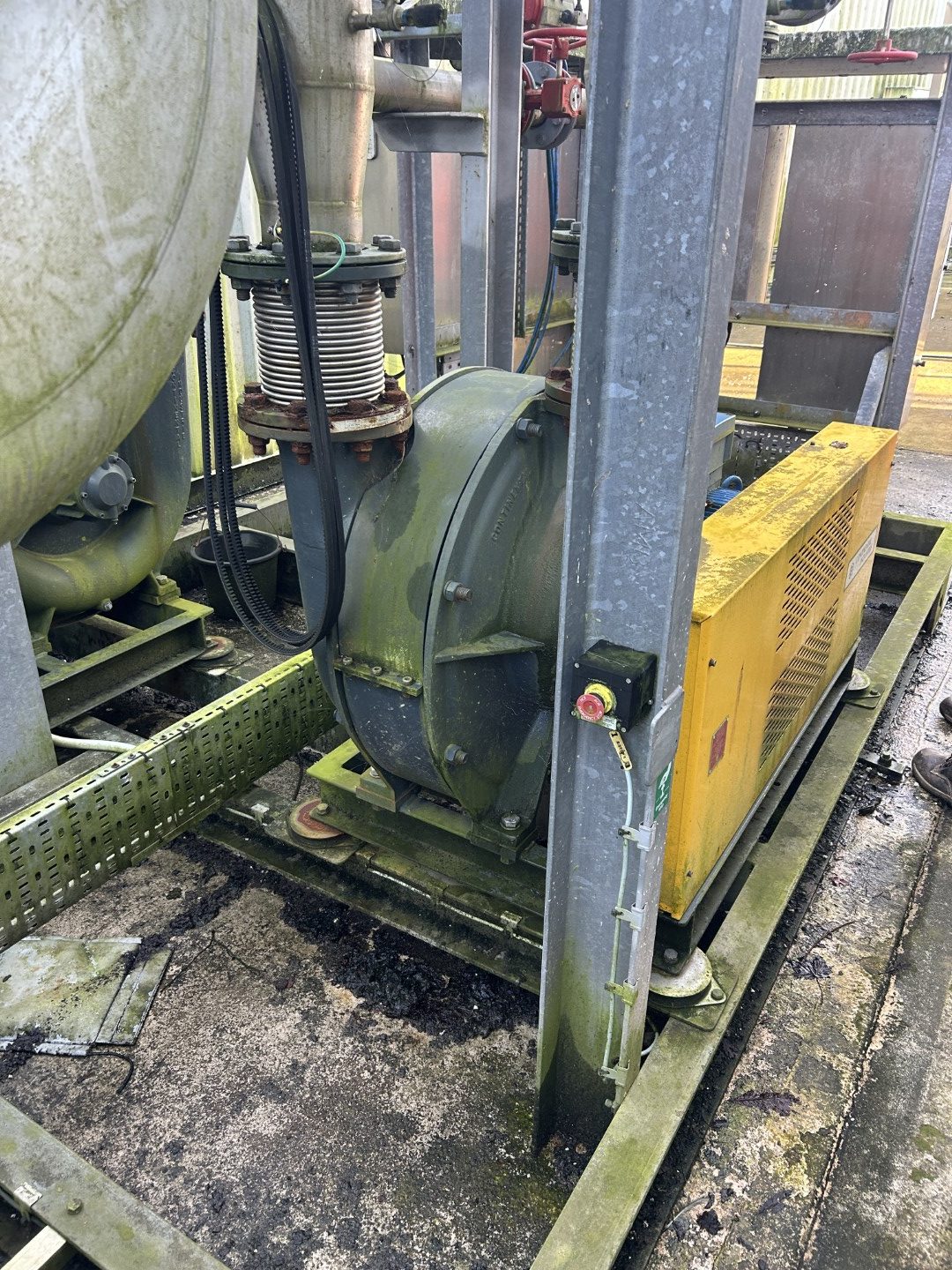

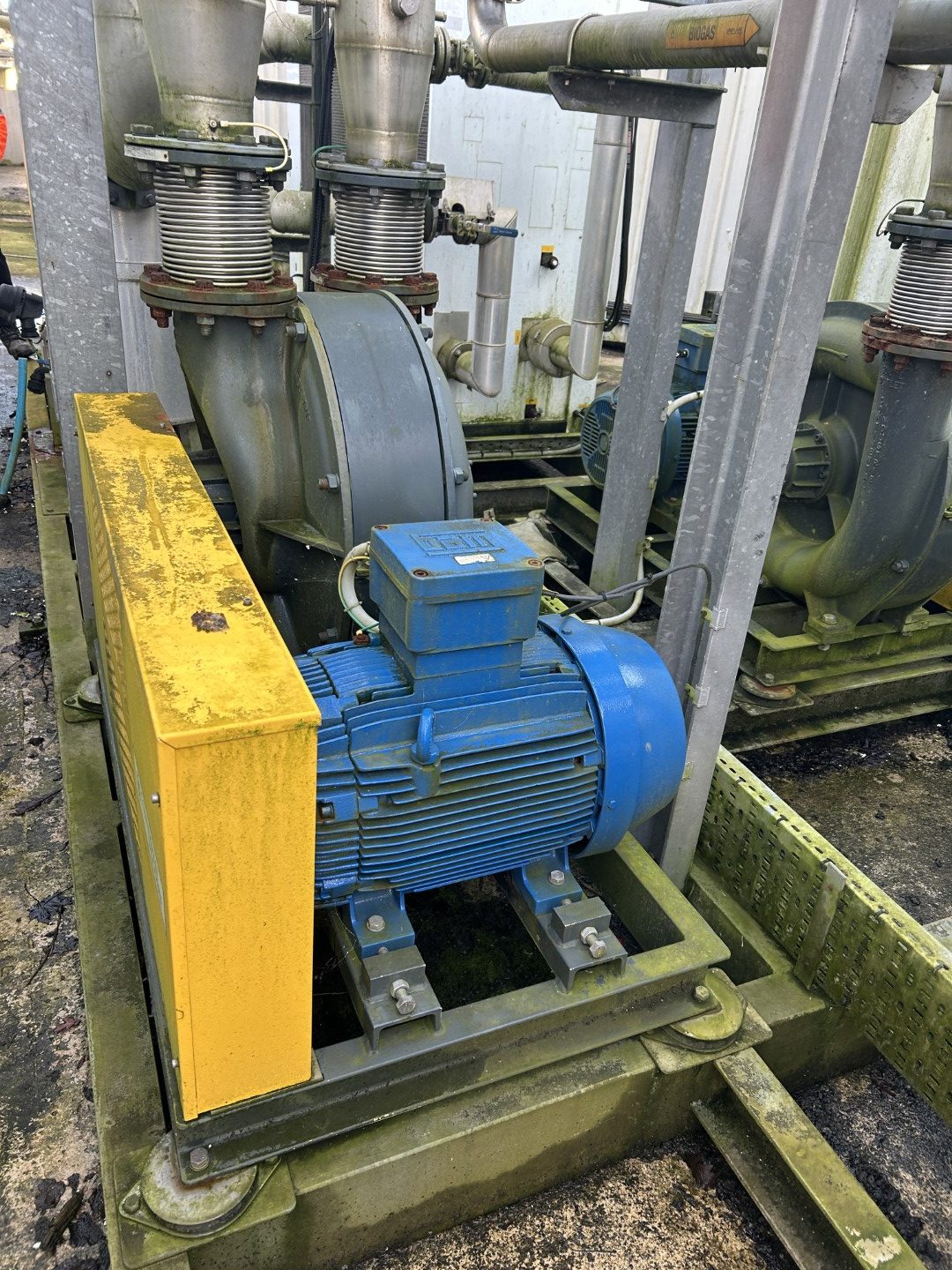

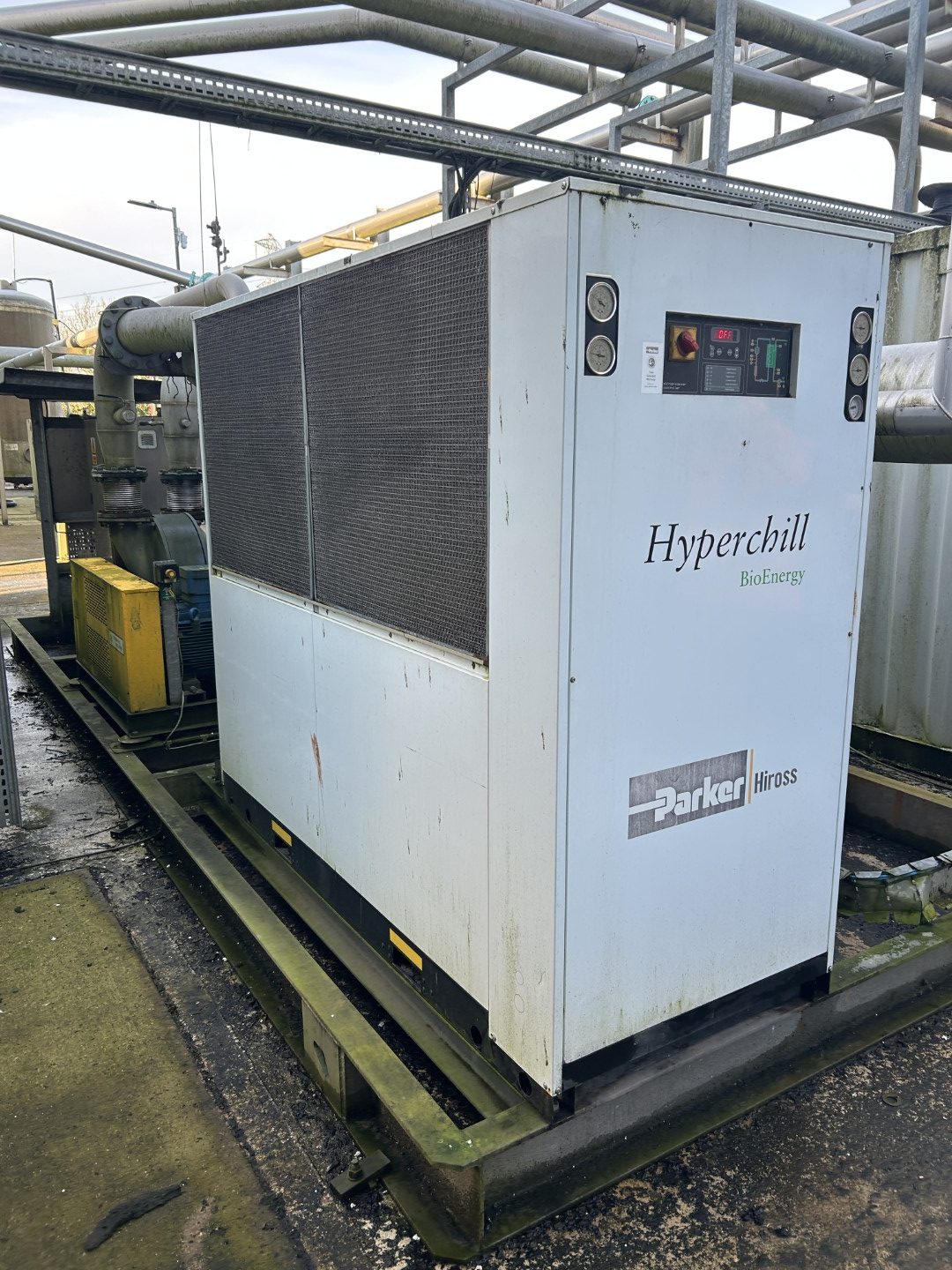

Complete package with twin gas boosters (duty/standby), Parker Hyperchill refrigeration system , automatic condensate discharge system.

Now available due to replacement with a larger system.

Technical Details:

Inlet biogas connection: DN400, PN16

Inlet biogas pressure: 0-10mbarg

Outlet biogas connection: DN200 PN16

Outlet biogas pressure: +170-+180mbarg

Outlet biogas flow rate: 2000 Nm3/hr

Condensate connection: 1″ BSP / DN25 BSP

Overall dimensions LWH: 9579 x 2700 x 2550mm

Recommended concrete slab dimensions L x W: 10000 x 2700mm

Overall weight: 6,000kg

Pipework: Stainless Steel

Frame: Galvanised Steel

Available from March 2026

Location: SW England

Please call to arrange an inspection
